TITAN VEHICLE is a professional manufacture which have flatbed tri axle trailer, 12m tri axle trailer and tri axle trailer for sale to many countries.

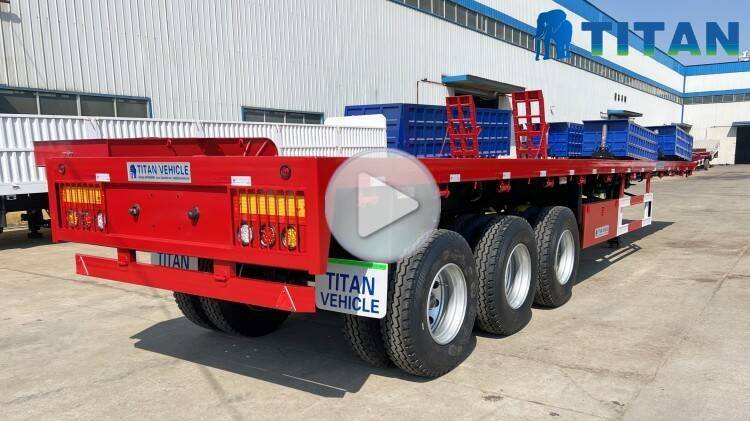

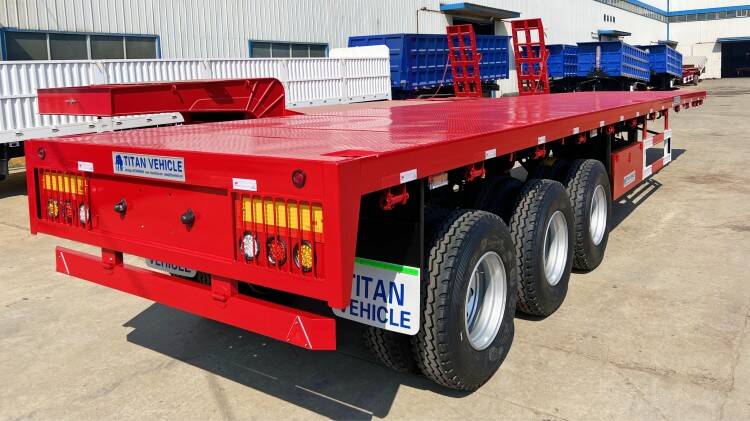

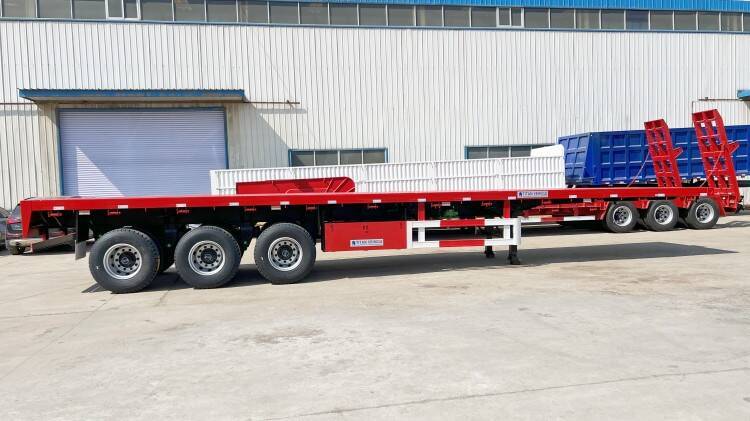

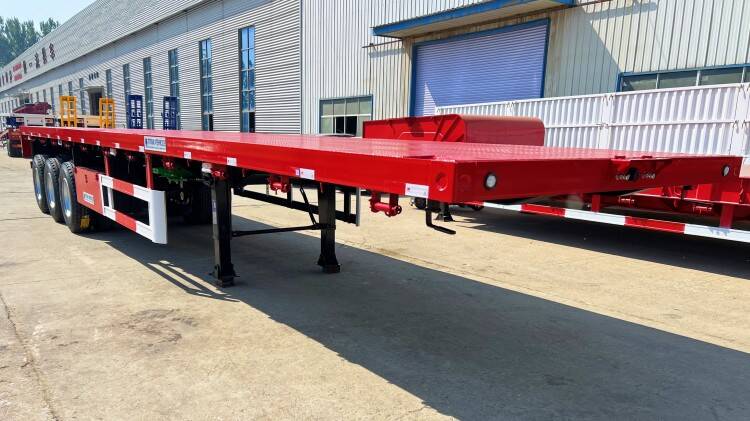

Flatbed Tri Axle Trailer. Its dimension is 12500m*2500*1530mm. A 40HQ container can hold 2 trailers.
This model can bear up to 60 tons.

Each flatbed tri axle trailer are equipped with 12 high-quality twist locks, it can transport a 40ft container and 20ft containers. It can also be used to transport many other goods which are easy to be fixed, such as bagged Cargo and metal etc.

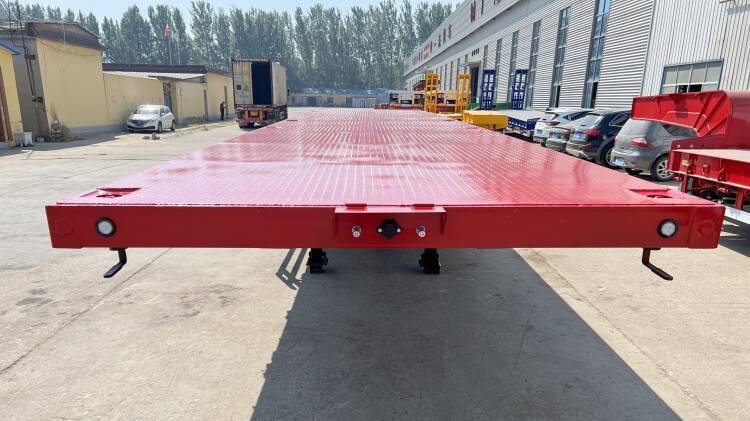

Our platform uses thickened 3mm T700 high-strength steel, which improves its service life and has a higher load-bearing capacity. The surface of platform has increased checkered pattern, which greatly increases the anti-slip and wear resistance of the platform.

For the appearance of the vehicle, we use polyurethane paint with high adhesion and high color rendering. Compared with ordinary acid paint, this material can maintain the color of the vehicle for a longer time and protect the body better.

Details of 12m Tri Axle Trailer for Sale

Model: flatbed tri axle trailer
Dimension(mm): 12500x2500x1530mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T axle with 16T braking pads
Tire: 12 units, 12R22.5
Rim: 12 units, 9.00-22.5
Suspension: Mechanical suspension/Air suspension
Platform: 3mm-thick checkered HSS plate
Main Beam: Q345B steel, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm,, Height: 500mm
Side Beam: Q235 steel, 16mm or 18mm steel channel
Twist Locks: 12 sets (lifting or screw type)
King Pin: JOST brand 2.0inch or 3.5inch

When transporting flatbed tri axle trailer, customers can chose container transportation, bulk carriers or ro-ro ships. We will recommend suitable transportation methods to customers according to different situations.

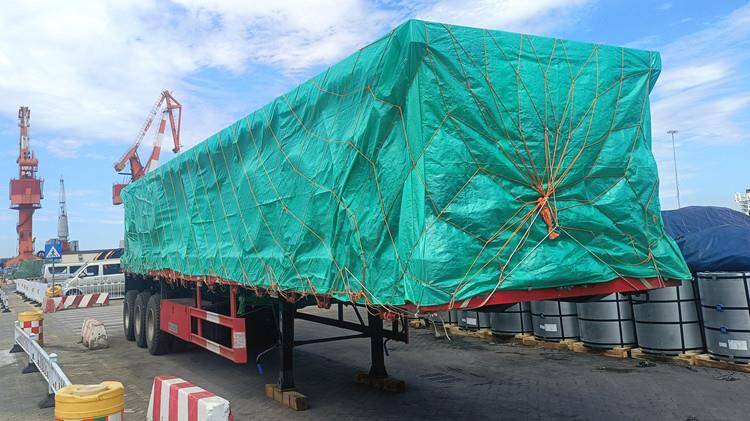

Titan will also cover rain cloth on the trailer to protect the trailers.
