TITAN VEHICLE is a professional manufacturer of Fuel Tanker, Fuel Tanker Trailer, 3 Axle Fuel Tanker Trailer, 40000 Liters Fuel Tanker Trailer for about 20 years, with rich experience and many manufacturing process advantages.
This 40000 Liters Fuel Tanker Trailer is a semi-trailer used to transport liquids.
Its dimension is 11000*2500*3800mm.
Weight is 9.8ton.
Volume is 4000L.
It is mainly used for transporting many different kinds of liquids, such asdiesel, gasoline, edible oil and chemical liquids, etc. The liquid will generate huge tension and impact during transportation, so the tank must be strong enough.

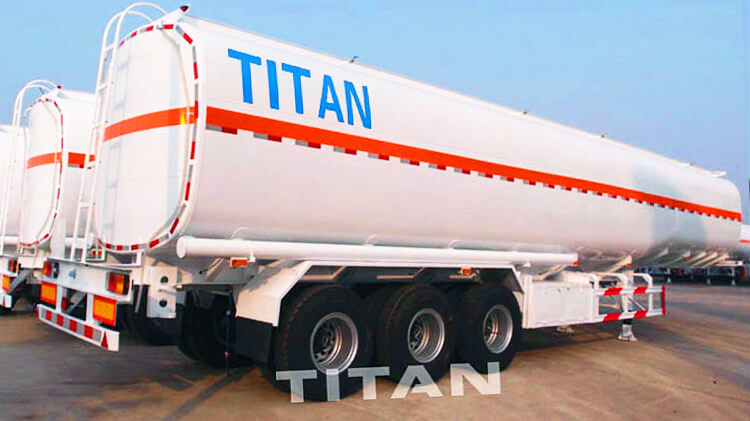

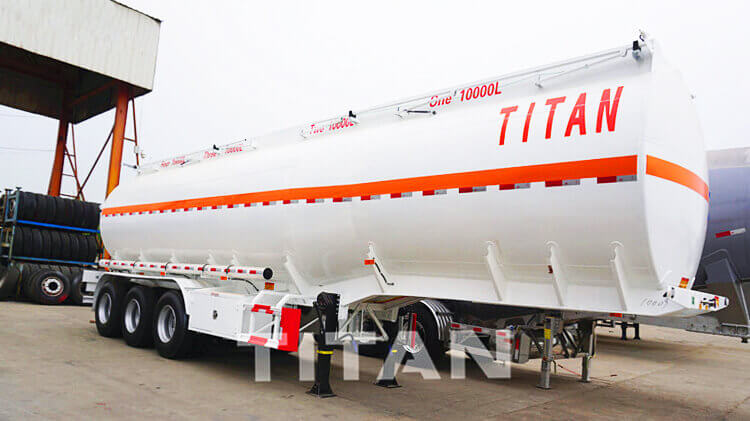

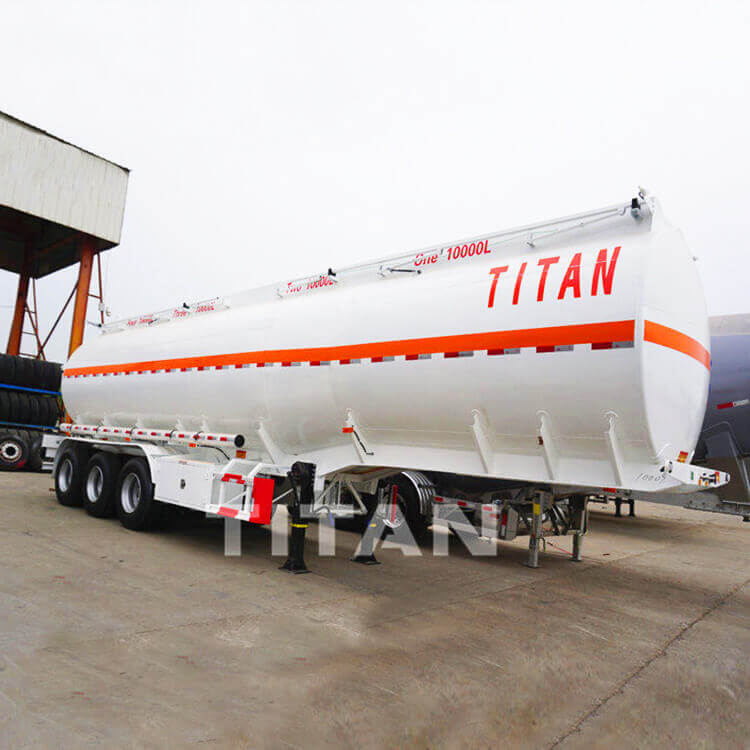

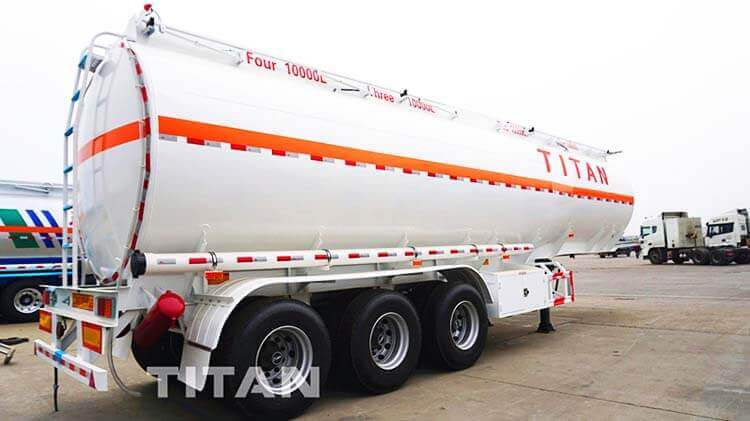

Details of 3 Axle 40000 Liters Fuel Tanker Trailer for Sale
Details of 3 Axle 40000 Liters Fuel Tanker Trailer for Sale
1. With safety devices: the manhole is a large explosion-proof lid. The bottom outlet of the tank is equipped with an emergency shut-off valve.
2. The tank body of the TITAN tanker is longitudinally welded which reduce the number of welds, ensure the safety of the tanker and increase the service life.
3. After production， we will make water full test device Water tank: To ensure high tightness of tank body and avoid oil leakage.
Model: 3 Axle 4000 L Fuel Tanker Trailer
Dimension: 11100mm*2500mm*3800mm (the exact size depends on the final design.)
Volume: 40m³
Tank Body Material: 5mm carbon steel
End plate: 6mm carbon steel
Manhole Cover: Carbon steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Axle: 3 axles, 13T
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: 2.0 or 3.5 inch
Suspension: Mechanical suspension
Leaf Spring: 90(w)mm*13(thickness)*10 layers
Rim: 9.00-22.5
Tire: 12.00R22.5

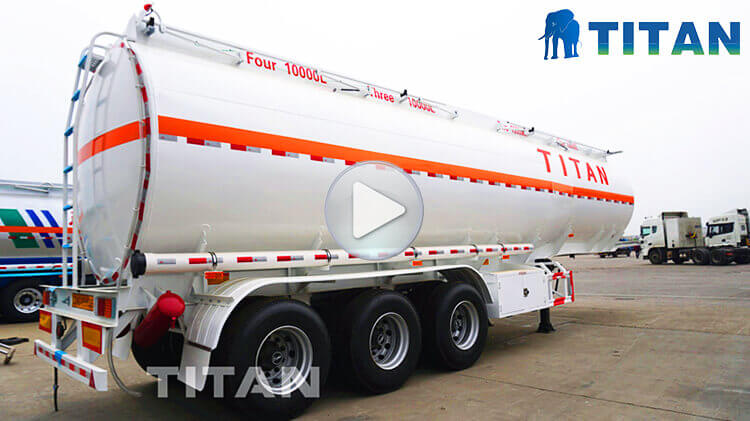

Through the video below, you can learn about the process, testing, packaging, customer feedback and more details about our fuel tanker trailers.
