TITAN VEHICLE is a professional manufacturer of Diesel Tanker, Diesel Tanker Trailer, Diesel Tanker for Sale for about 20 years, with rich experience and many manufacturing process advantages.

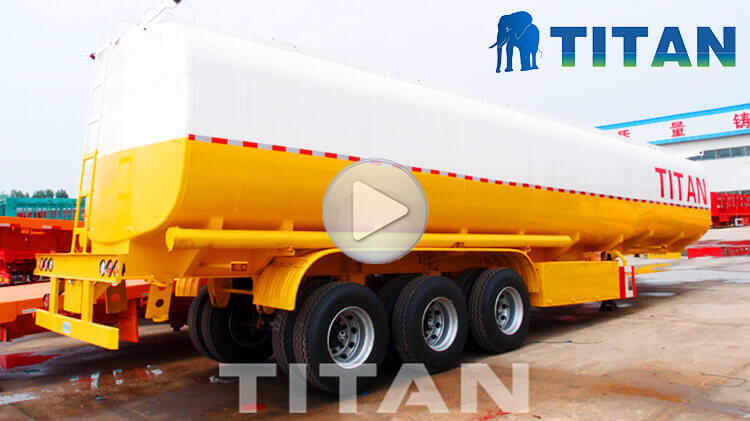

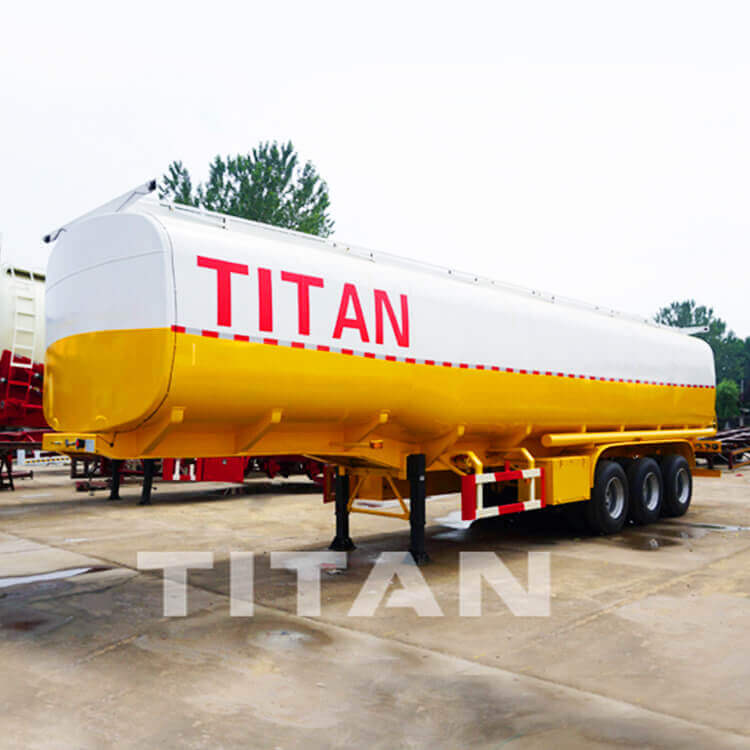

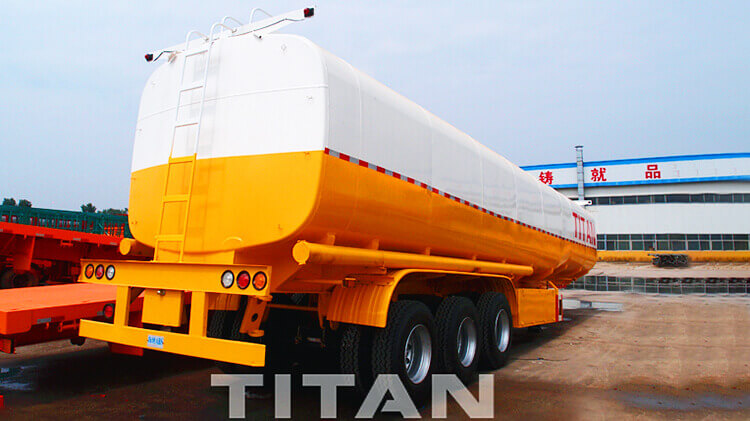

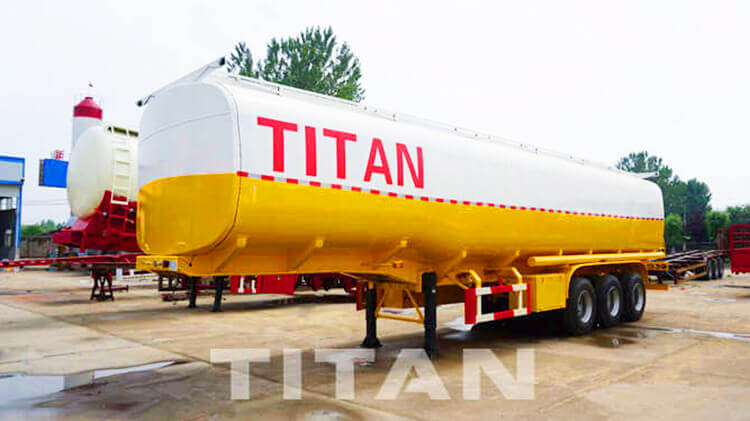

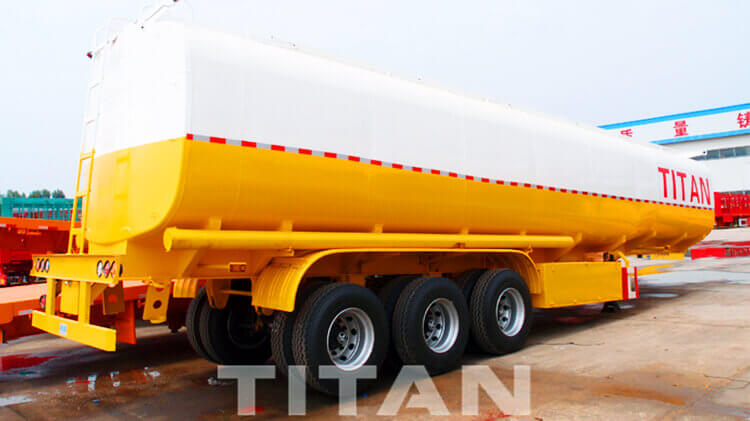

This 45000 Liters Diesel Tanker Trailer is a semi-trailer used to transport liquids.
Its dimension is 12000*2500*3900mm. Volume is 45000L.
It is mainly used for transporting many different kinds of liquids, The liquid will generate huge tension and impact during transportation, so the tank must be strong enough.
Details of 3 Axle 45000 Liters Diesel Tanker Trailer for Sale
Details of 3 Axle 45000 Liters Diesel Tanker Trailer for Sale
1. Fuel outlet valve: We have a special design for the fuel outlet valve, which can better guarantee that when we dismantle the joint, there will be no fuel leakage. The internal structure is more in line with fluid mechanics, and when there is a large flow of goods out, the internal pressure can be balanced.
2. Subsea valve: The subsea valve is usually installed at the bottom of the tank, usually, its role is in the fuel semi trailer after an accident, in order to prevent the transport of liquid fuel leakage, resulting in greater economic losses, once the accident, the subsea valve will automatically cut off the pipeline within 3 seconds to ensure the safety of the transported goods.
3. Manhole cover: The manhole cover is specially designed, it has many functions, which can guarantee the safety of the tri axle fuel semi tanker trailer to a certain extent.
Model: Fuel Tanker Trailer
Dimension: 11100mm*2500mm*3800mm (the exact size depends on the final design.)
Volume: 45m3
Tank Body Material: 5mm carbon steel
End plate: 6mm carbon steel
Manhole Cover: Carbon steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Axle: 3 axles, 13T
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: 2.0 or 3.5 inch
Suspension: Mechanical suspension
Leaf Spring: 90(w)mm*13(thickness)*10 layers
