TITAN VEHICLE is a professional manufacturer of 80ton low loader, low loader trailer, low loader trailer for sale for about 20 years, with rich experience and many manufacturing process advantages.
3 axle 80ton low loader trailer dimension is 13000m*3000*1700mm.
This low loader trailer is mainly used for transporting heavy equipment and goods such as excavators, bulldozers, road repair equipment, large stones and wood. This model can bear up to 80 tons.

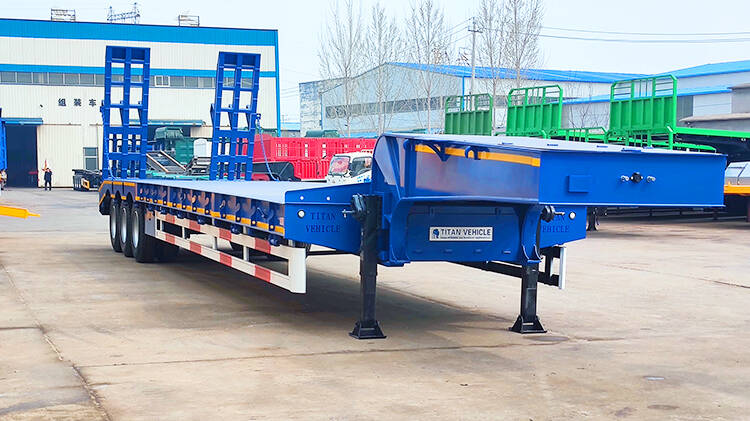

3 Axle 80ton Low Loader Trailer for Sale in Madagascar

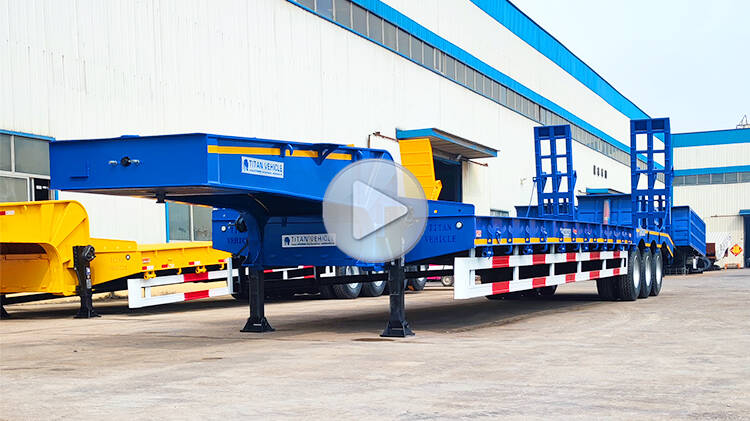

3 Axle 80ton Low Loader Trailer for Sale in Madagascar
1. The center of gravity is very low. Because it is carrying heavy cargo, it is necessary for the low loader trailer to be stable when carrying the cargo, to ensure that there will be no problems during the transportation of the cargo, so to ensure its stability, it is necessary to lower its center of gravity. In terms of appearance, the design of the low loader trailer is very short to ensure that the center of gravity of the trailer is low.
2. Good stability. The low loader trailer is more stable than other semi-trailers. On the one hand, it is because of its low compartment height, and on the other hand, it is because of its structure design, railing design, and component combination. Ensure that there will be no problems during the transportation of the goods due to the stability of the low loader trailer itself. Low loader trailers rarely cause rollover accidents due to poor stability during transportation.
3. Good safety performance. The low loader trailer has a great advantage, that is, when transporting heavy goods, it can be transported at super height. When we often see sports cars, several layers of transportation are used. The number of trailers can be expanded and the cost input can be reduced. Because the trailer itself has good performance, it will not cause danger when transporting goods in time. Also, its own compartment height is low, so it is safer when transporting goods through underground holes or head obstacles.

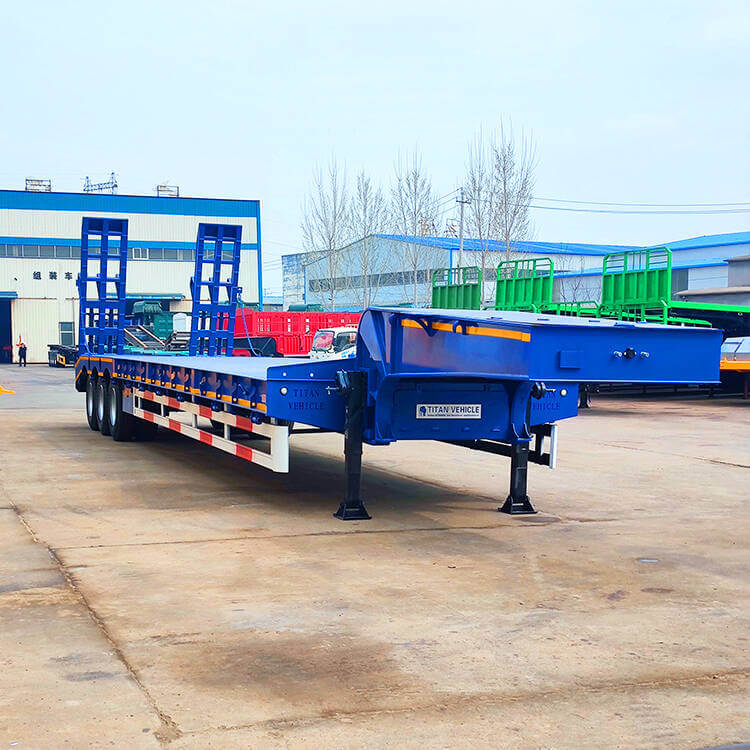

Model: 3 Axle 80ton Low Loader Trailer
Dimension: 13000*3000*1700mm(depends on final design)
Capacity: 80T
Axles: 3 axles, 13T axle ( with 16T braking pads )
Material: HG60 high strength steel（Q460C）
Tire: 12R22.5
Rim: 9.00-22.5
Suspension: Mechanical suspension

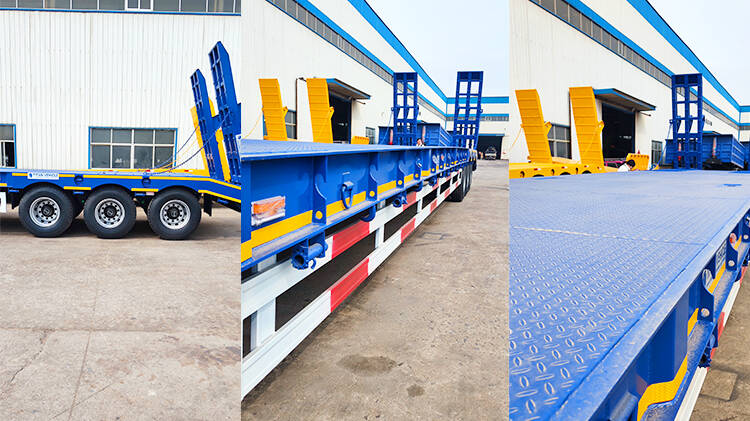

Platform: 5mm-thick checkered HSS plate
Main Beam: Q460C steel, Upper plate:20mm, Middle plate:14mm, Bottom plate:20mm,, Height: 500mm
Side Beam: 300mm*140mm H-type(8/6/10mm)
King Pin: JOST 2.0inch or 3.5inch

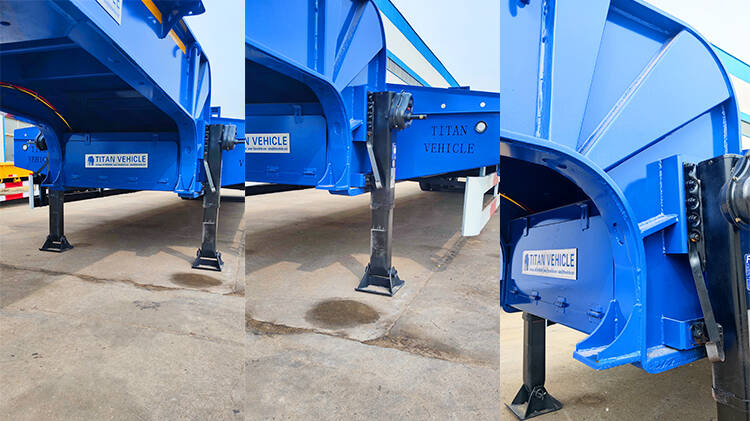

Landing Gear: Chinese Standard 28tons or JOST
Spring: 10pcs,16mm thick, 900mm wide
