TITAN VEHICLE is a professional manufacturer which have have lowbed trailer, lowbed trailer for sale for many years.

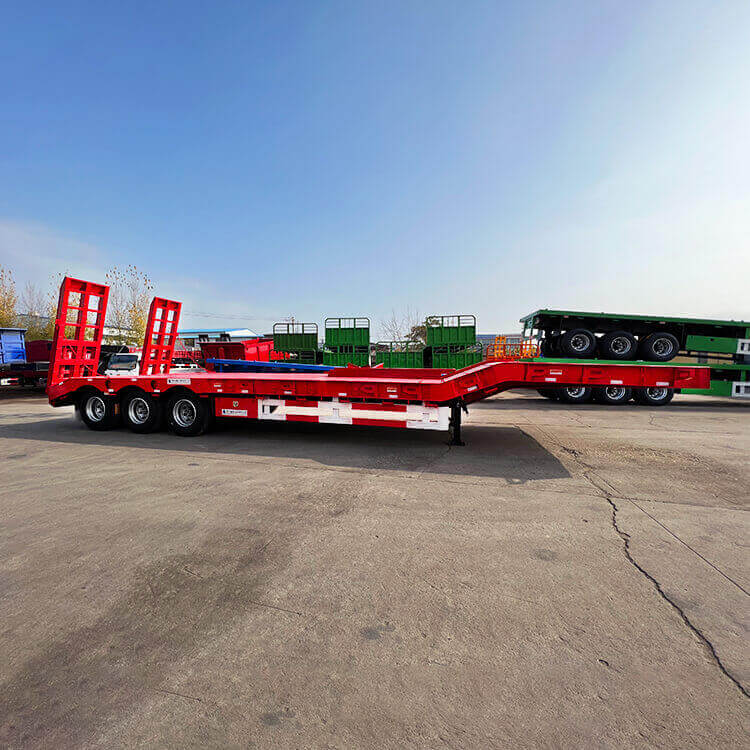

3 Axle 60ton Lowbed Trailer. Its dimension is 13000m*3000*1700mm.
This 3 Axle 60ton Lowbed Trailer is mainly used for transporting heavy equipment and goods such as excavators, bulldozers, road repair equipment, large stones and wood. This model can bear up to 60 tons.

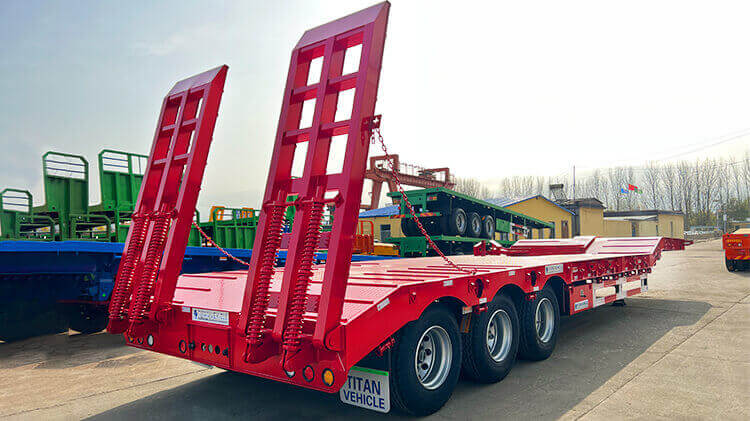

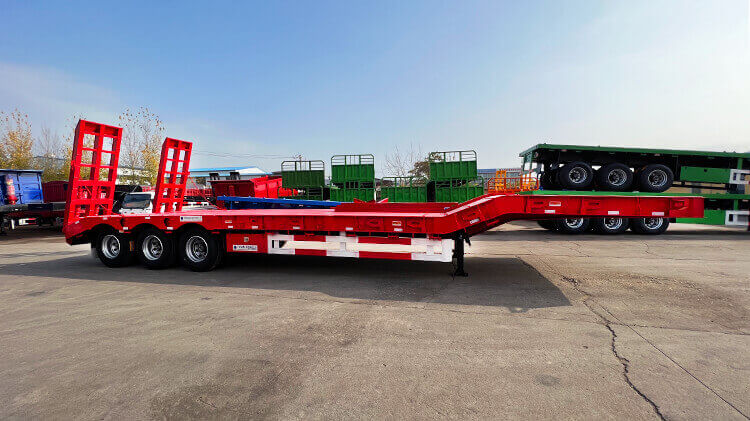

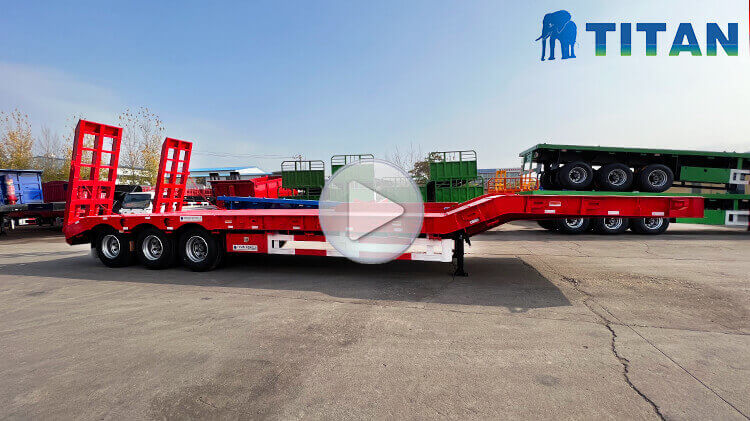

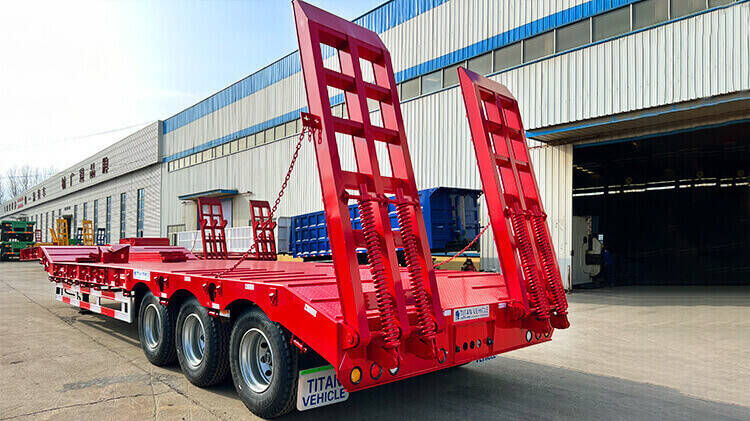

3 Axle 60ton Lowbed Trailer for Sale Types
3 Axle 60ton Lowbed Trailer for Sale Types
1. The main beam of our lowbed trailer is made of HG high-strength steel with higher bearing capacity to prolong the service life of the main beam.
2. TITAN's side beam adopts high-strength steel with "H" design, which is durable and avoids deformation of the side beam.
3. The loading ramp has two optional spring ramps and hydraulic ramps, and additional reinforcements have been made inside the steel to make it have a higher load-bearing capacity and will not deform when handling heavy equipment.
Model: 3 Axle 60ton Lowbed Trailer Types
Dimension: 13000*3000*1700mm
Capacity: 60T-120T
Axles: 3 axles, 13T axle ( with 16T braking pads )
Material: HG60 high strength steel（Q460C）
Tire: 12R22.5
Rim: 9.00-22.5
Suspension: Mechanical suspension
Platform: 5mm-thick checkered HSS plate
Main Beam: Q460C steel, Upper plate:20mm, Middle plate:14mm, Bottom plate:20mm,, Height: 500mm
Side Beam: 300mm*140mm H-type(8/6/10mm)
King Pin: JOST 2.0inch or 3.5inch
Landing Gear: Chinese Standard 28tons or JOST
Spring: 10pcs,16mm thick, 900mm wide
