TITAN VEHICLE is a professional manufacture which have flatbed trailer, 48 ft flatbed trailer, 4 axle trailer, flatbed trailer for sale for about 20 years.

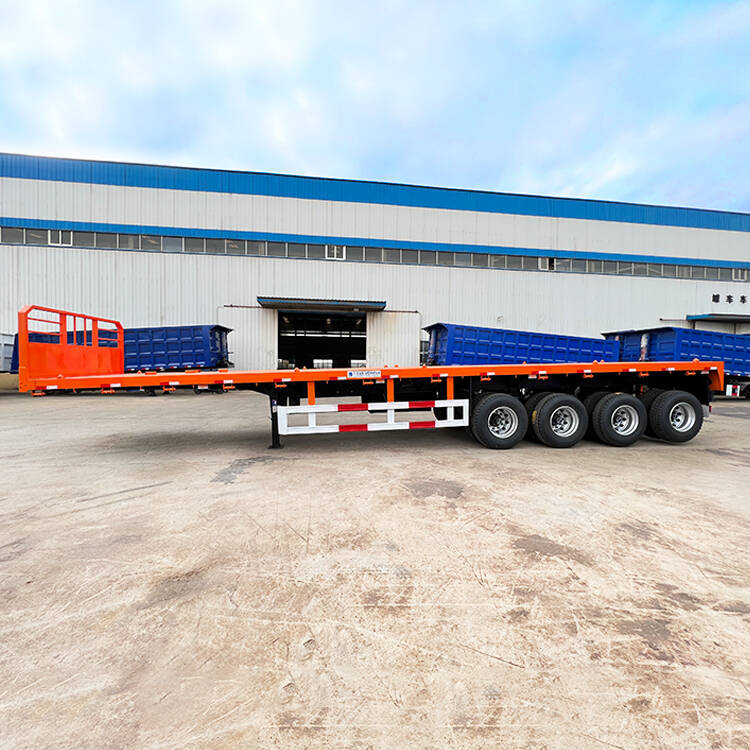

48ft 4 Axle Trailer. Its dimension is 13500m*2500mm*1530mm. A 40HQ container can hold 2 trailers.
Each vehicles are equipped with 12 high-quality twist locks, so it can be used to transport various sizes of containers. It can also be used to transport many other goods which are easy to be fixed, such as bagged cargo and metal etc. This model can bear up to 100 tons.

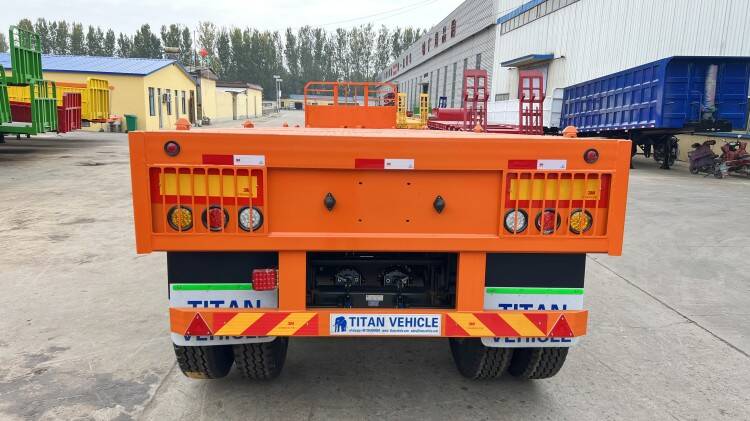

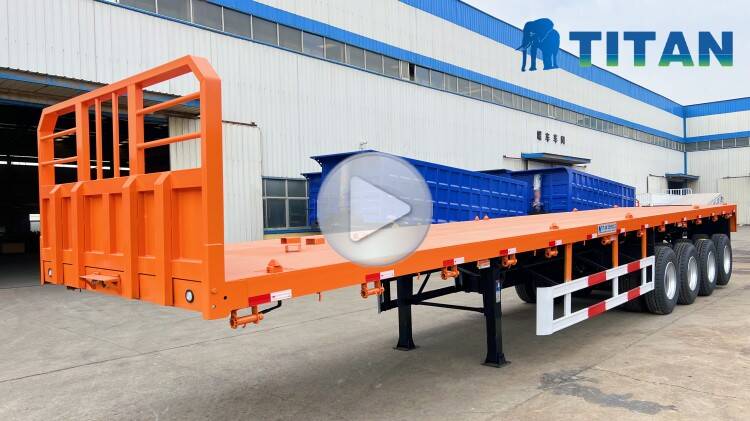

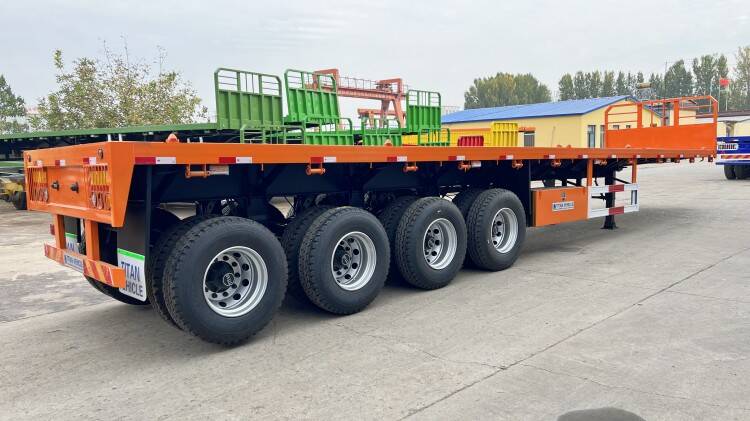

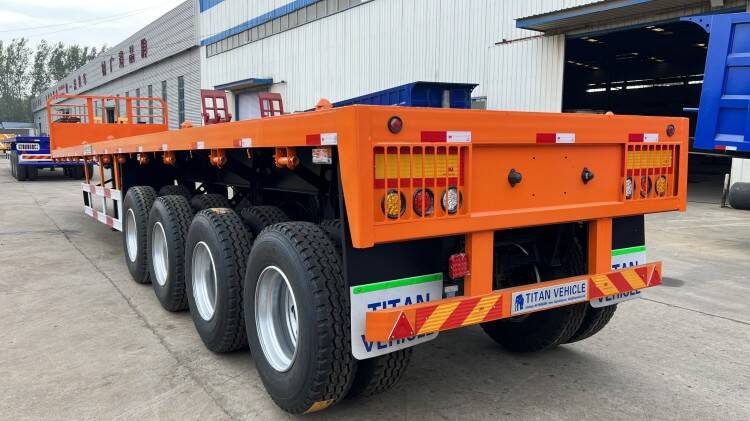

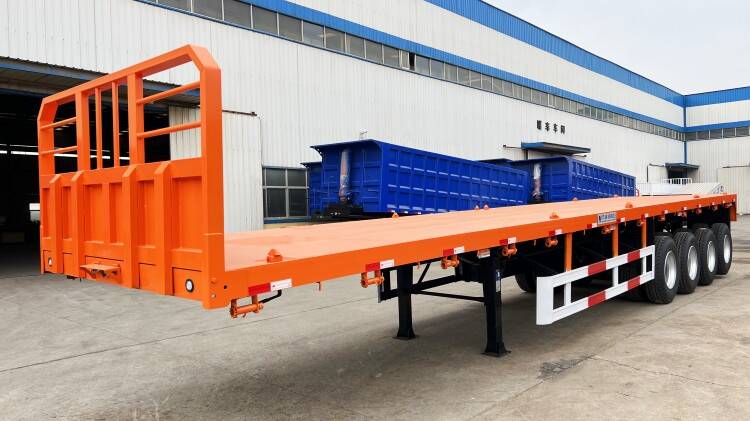

Details of 4 Axle 48 Ft Flatbed Trailer for Sale Near Me in Ghana
Details of 4 Axle 48 Ft Flatbed Trailer for Sale Near Me in Ghana
Details of 4 Axle 48 Ft Flatbed Trailer for Sale Near Me in Ghana
1. For the main beam of the 4 axle trailer, we use use Q345 HSS and we use the automatic submerged arc welding process to weld the main beam. There is no welding interface at the connection between upper plate, middle plate and bottom plate, which ensuring the unity of the main beam and makes it more durable.
2. Many accessories of our 4 axle trailer are used by very famous brands. For example, for the landing gear, we use JOST brand which have better bearing capacity and service life. And braking systerm we use Wabco, which have faster braking response.
3. For the appearance of the vehicle, we use polyurethane paint with high adhesion and high color rendering. Compared with ordinary acid paint, this material can maintain the color for a longer time and protect the vehicle body better.
Model: 4 axle trailer
Dimension(mm): 13500x2500x1530mm
Loading capacity: ≤100T
Axles: 4 axles, 13T axle ( with 16T braking pads )
Tire: 12R22.5
Rim: 9.00-22.5
Suspension: Mechanical suspension/ Air suspension
Platform: 3mm-thick checkered HSS plate
Main Beam: Q345B steel, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm,, Height: 500mm
Side Beam: Q235 steel, 16mm channel steel
Twist Locks: 12 sets (lifting or screw type)
King Pin: JOST, 2.0inch or 3.5inch
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
Landing Gear: Standard 28tons(double-speed) or JOST brand
