50T Dump Semi-trailer is our special design for Africa bad road condition, It’s more durable. Dump Semi-trailer is reliable and widely used, suitable for medium and long distance transportation.
50T Dump Semi-trailer for Sale is reliable and widely used, suitable for medium and long distance transportation. TITAN adopts Polyurethane paint for our semi tipper trailer, It’s more bright and firm.
Hydraulic 50T Dump Semi-trailer for Sale adopts heavy-duty suspension. We use the 70 mm Center pin, and other factories usually use the 45 mm center pin. And our suspension is reinforced. This is our special design for Africa bad road condition, It’s more durable.

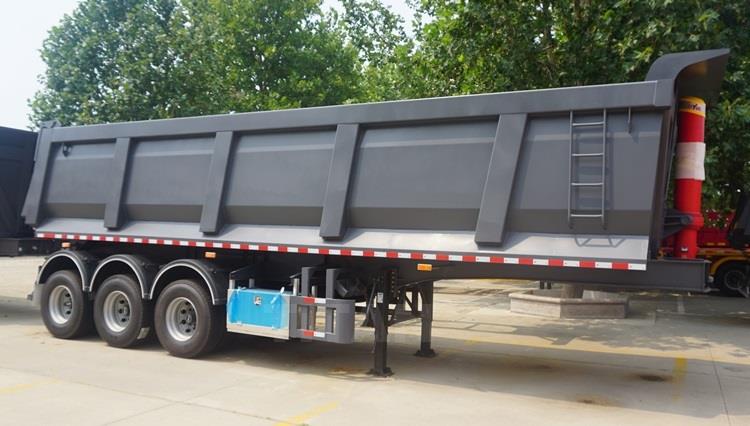

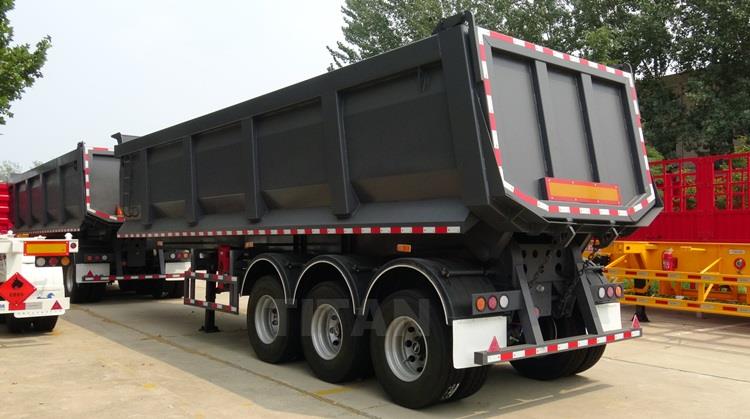

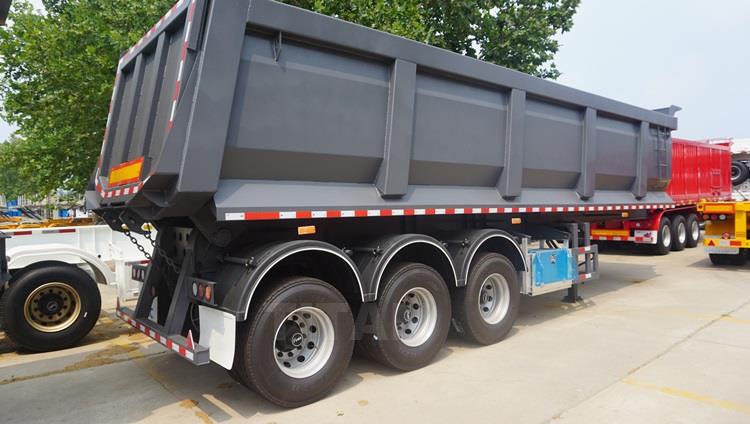

50T Dump Semi-trailer for Sale in Tanzania Dar es salaam
3 axle 50T Dump Semi-trailer for Sale
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 30m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Through the video below, you can learn about different types of tipper semi trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer. And the process, testing, packaging and customer feedback, etc.
