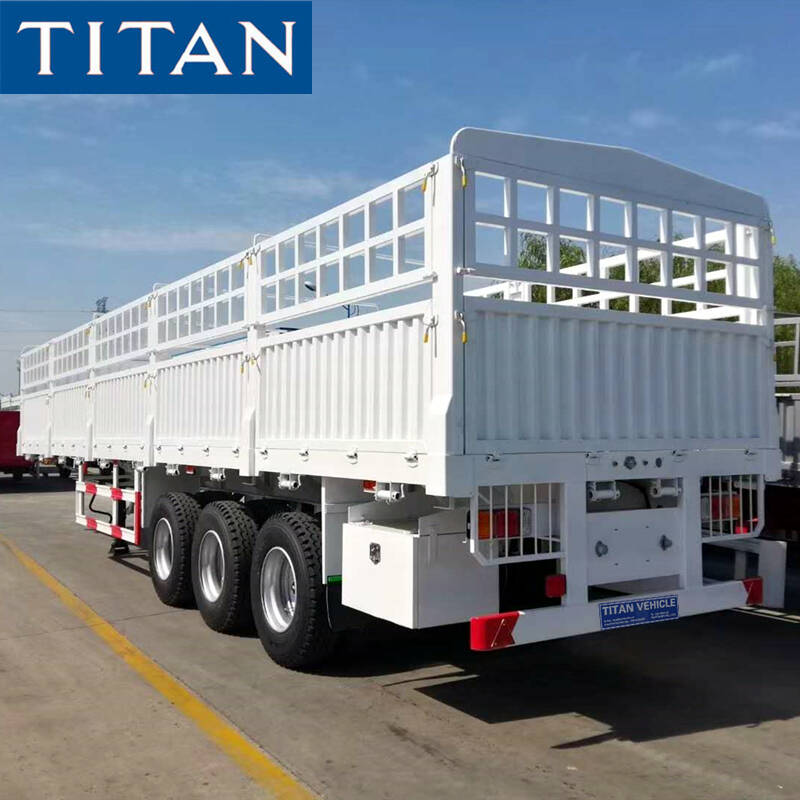

China 3 axle 60 ton fence semi-trailer mainly used for transportation of agricultural and sideline products and other bulk cargo.
China Fence semi-trailer is a common semi-trailer transport method, shipping stations, courier companies indispensable means of transport.
Fence semi trailer for the delivery of simple goods, such as: vegetables, fruits, clothes, appliances, and other daily necessities. Livestock semi trailers can also be used to transport sheep, cattle and other animals.

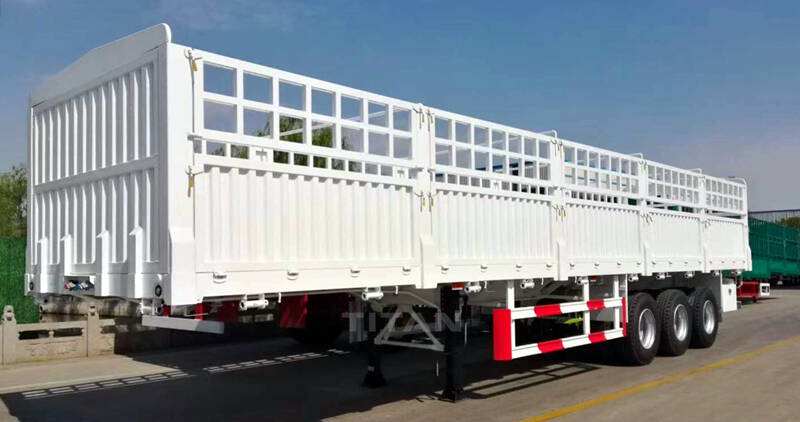

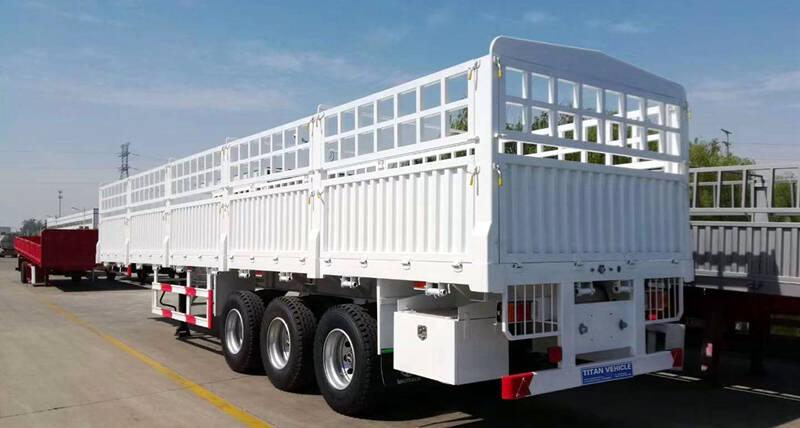

China Fence Semi-trailer for Sale in Malawi - TITAN Vehicle
Dimension(mm): 13000x2600x3420mm
Trailer Sides: 1800mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Through the video below, you can learn about different types of fence semi trailers(like 3 axle fence trailers, 4 axle stake trailer and fence full trailer)
And the process, testing, packaging and customer feedback, etc.
Please click "TITAN Fence Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
