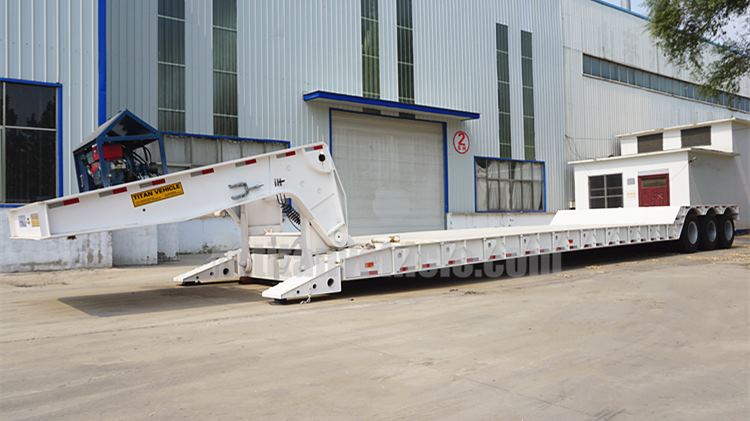

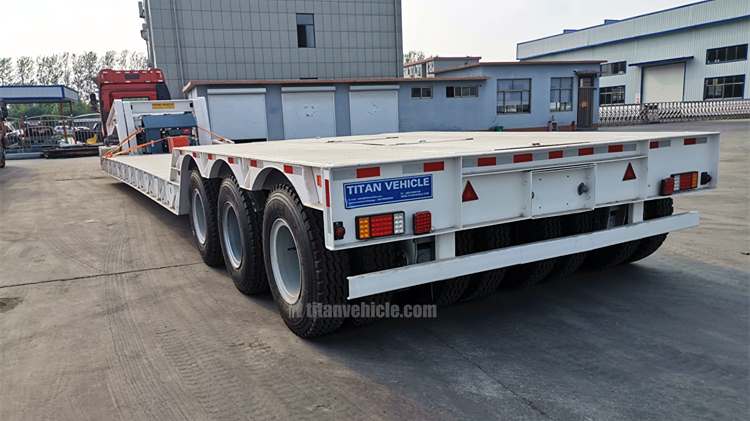

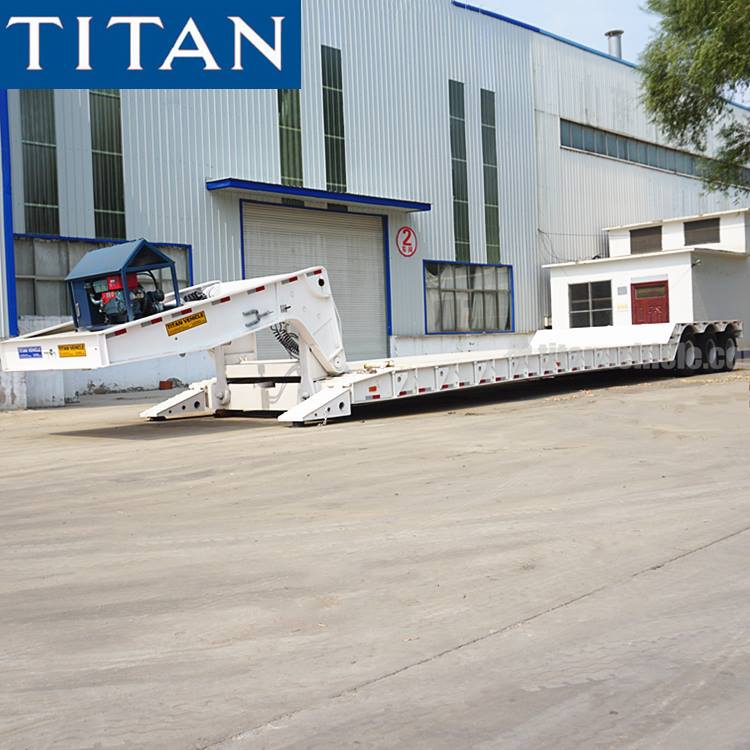

TITAN double drop trailer is with high tensile steel frame to ensure high load requirements on the bad road condition.
The double drop trailer is used for trailers that carry oversize and overweight cargo. The basic form of a heavy trailer is a monocoque trailer. It generally has the following structure. The frame and the wheel axles and axles are mostly collinear, that is, there are two left and right axles on one axis, which is also called a two-axis row.
Overall dimension：17000mm * 3000mm *2500mm
Loading capacity(T): 50-150T
Axle: 3 line 6 axle
Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate

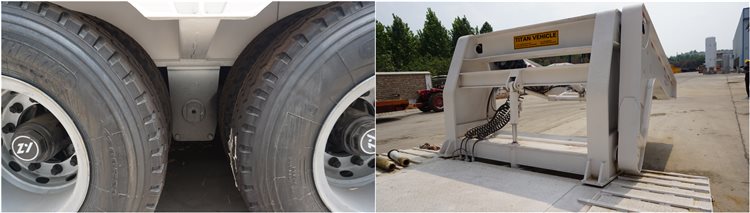

Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

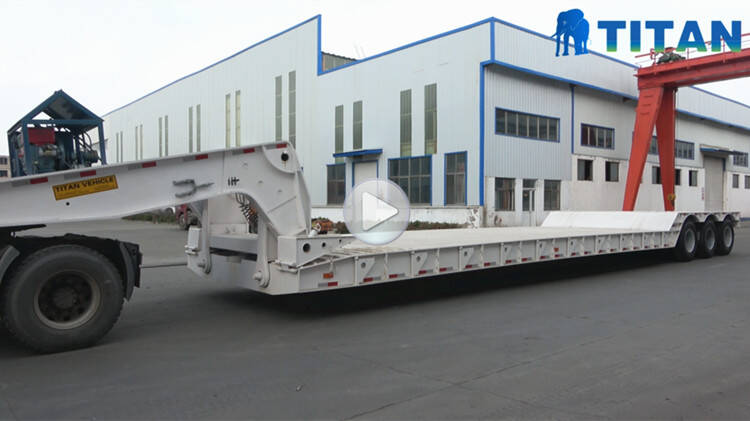

Through the video, you can know different types of double drop trailer , lowboy trailer truck , double drop trailer for sale, etc.
Please click "TITAN Double Drop Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
