Drop Sidewall Semi Trailer is used extensively throughout the Africa to transport agricultural products as well as any other commodity that can be hauled in bulk and loaded and unloaded through the trailer.
Side wall Trailer was popular by logistics companies as its multipurpose application. Drop Side Trailer have a hight quality side wall, make sure the stability and safety of the loads.
TITAN always insists on doing good quality dry cargo trailers and ensure the customer's income.

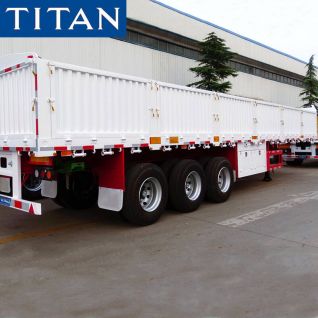

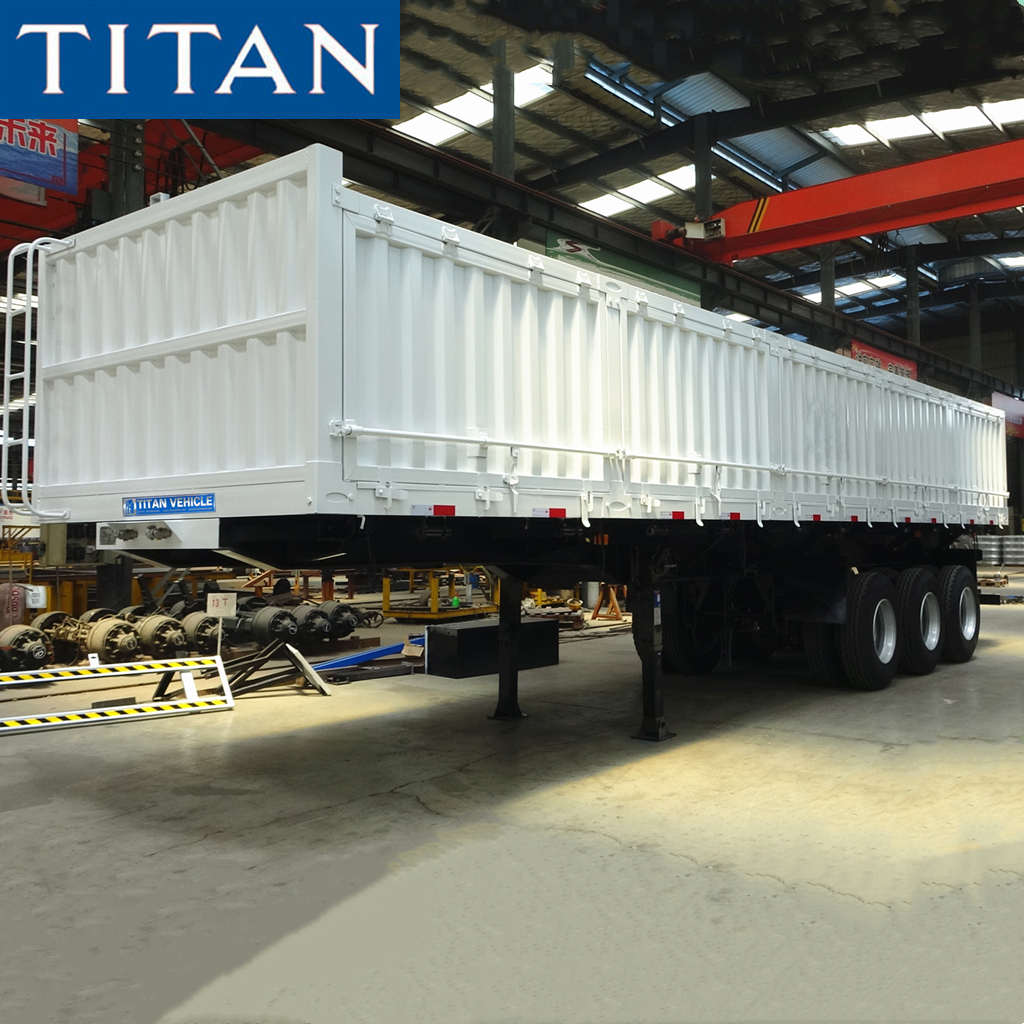

Drop Side Wall Semi Trailer for Sale in Kenya - TITAN Vehicle
Dimension(mm): 12500x2500x3000mm
Trailer Sides: 900mm, or box type sides
Loading capacity(ton): ≤50T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Is the Drop Side Body Trailers engine overheated?
When you driving the drop side trailer a long time, the engine temperature will be high.
If you have already warned the water temperature gauge, you should control the speed, then slowly reduce the speed, then stop driving the Platform semi-trailer and put it in a cool place.
After the engine water temperature drops to a safe value, the engine can be shut down.
Wait for everything to be restored, ensure safety, and then continue driving.
Guaranteed safe driving is our most important thing! So, choosing the TITAN Drop Side Trailer Factory is your most correct decision.
Through the video below, you can learn about different types of side wall semi trailers(like 3 axle sidewall trailers, 4 axle high side trailer, grain hopper trailer, aluminum alloy side board trailer, 2 alxe side wall semi trailer with bogie suspension, dropside drawbar trailer)
And the process, testing, packaging and customer feedback, etc.
Welcome to click " TITAN cargo trailer" to get more videos on Youtube.
