Gooseneck Lowboy Trailers for Sale produced by TITAN includes a series of standard features, such as heavy chain pallets, all LED lighting, JOST legs, independent amber strobe kit.
Gooseneck lowboy trailers are not as common as bumper trailers. This means that most pickup trailers are not equipped with gooseneck trailer balls on the trailer chassis. Our gooseneck lowboy trailer includes a series of standard features, such as heavy chain pallets, all LED lighting, JOST legs, independent amber strobe kit, 11 pairs of D-rings, 2 inch nominal air-drying white oak floor, 3rd air lift axis (only 3-axis air slide device) and manual slide height multiplier (only air slide device)
Dimension: 17900mm * 2500+250*2mm *2200mm(platform 800mm)
Loading capacity(T): 50-150T
Axle: 3 axle withh 2 axle dolly; 13T/16T, FUWA / BPW / TITAN Brand
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

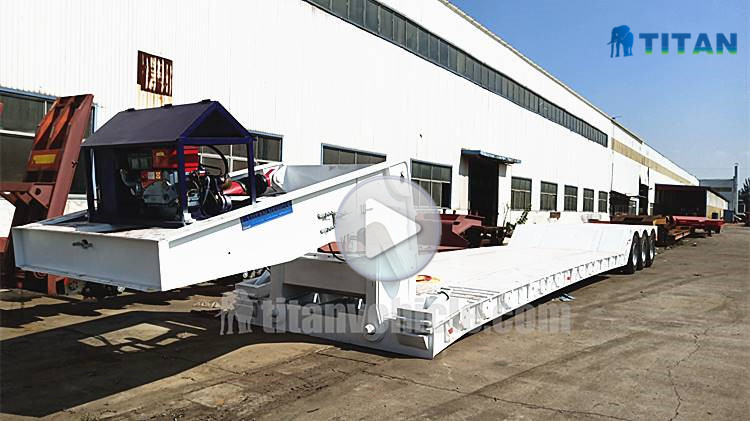

Through the video, you can know different types of 120ton gooseneck lowboy trailer , gooseneck lowboy trailers with dolly , lowboy trailer for sale, etc.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
