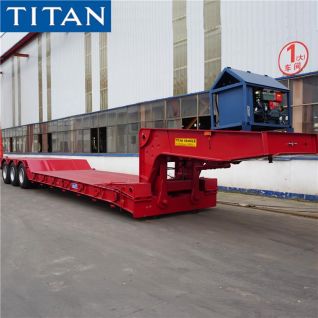

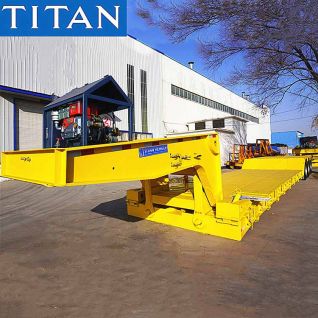

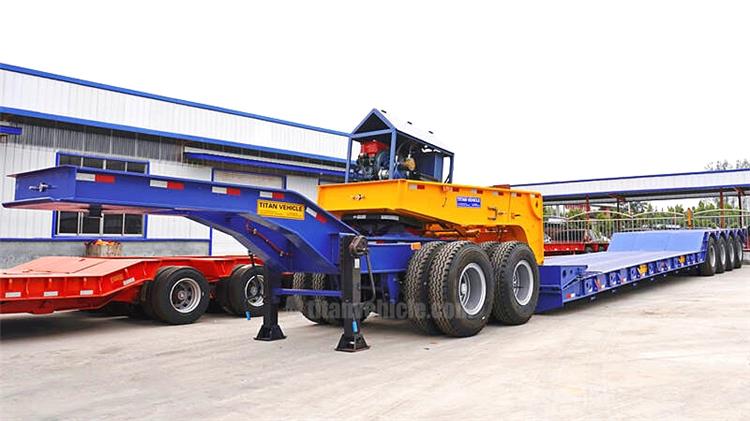

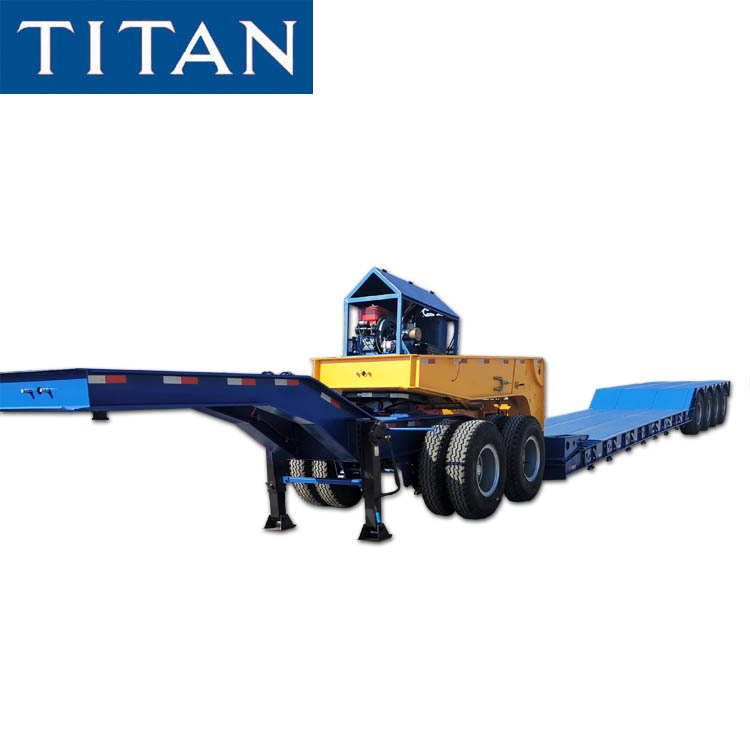

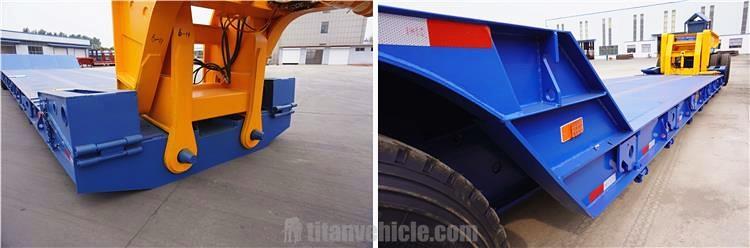

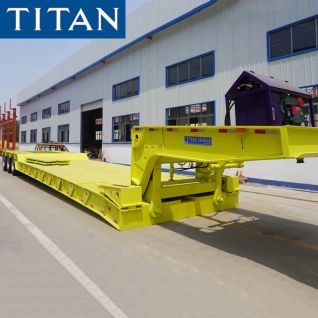

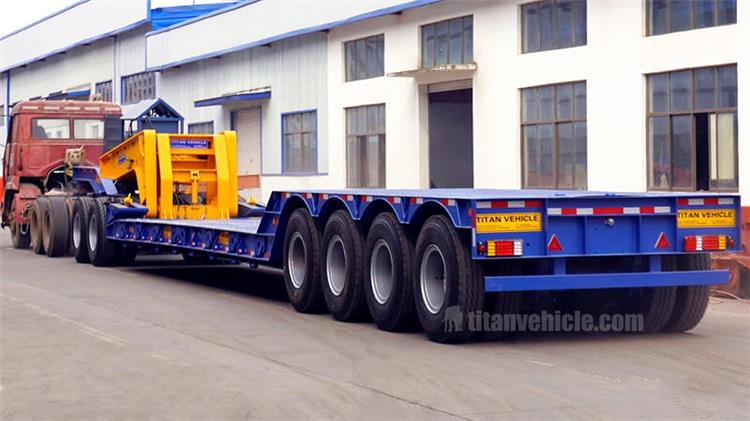

A low bed gooseneck trailer, also known as a double drop or lowboy, is ideal for hauling large equipment.
Our low bed gooseneck trailer includes a series of standard features, such as heavy chain pallets, all LED lighting, JOST legs, independent amber strobe kit, 11 pairs of D-rings, 2 inch nominal air-drying white oak floor, 3rd air lift axis (only 3-axis air slide device) and manual slide height multiplier (only air slide device).
Dimension: 17900mm * 2500+250*2mm *2200mm(platform 800mm)
Loading capacity(T): 50-150T
Axle: 4 axle withh 2 axle dolly; 13T/16T, FUWA / BPW / TITAN Brand
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

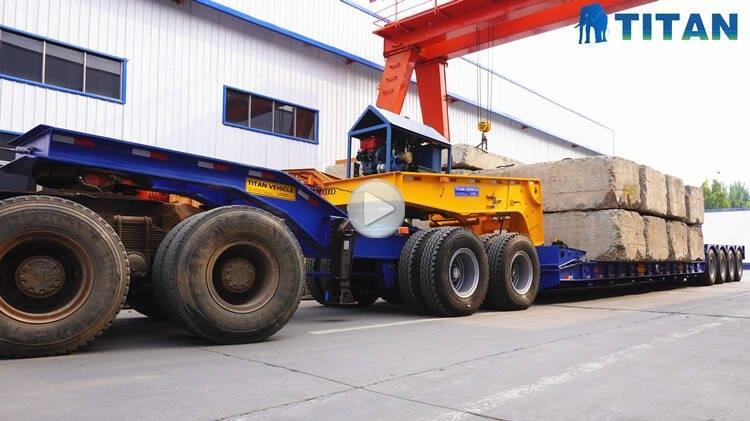

Through the video, you can know different types of 150ton low bed gooseneck trailer , 4 axle low bed gooseneck trailer for sale , gooseneck front loading low bed trailer , etc.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
