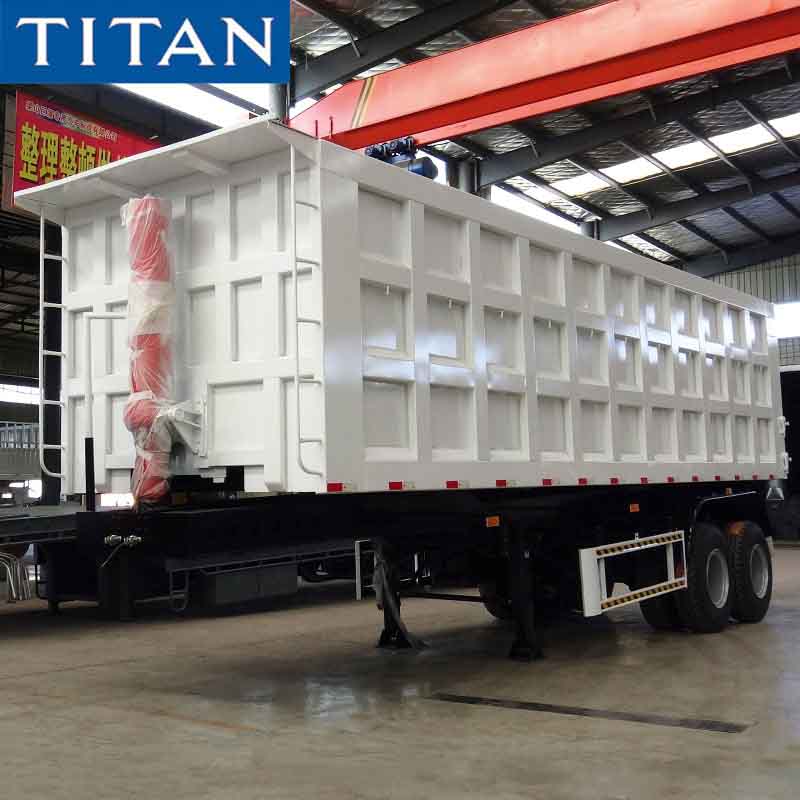

Heavy Duty 30 Cubic Semi Tipper for Sale is very efficient at transporting and unloading coals, limestone, sand, and other loose materials in bulk.
Heavy Duty 30 Cubic Semi Tipper for Sale is very efficient at transporting and unloading coals, limestone, sand, and other loose materials in bulk. Heavy Duty 30 Cubic Semi Tipper for Sale can be custom designed according to customer specific requirements.

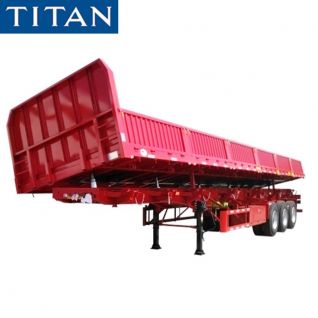

Heavy Duty 30 Cubic Semi Tipper for Sale cylinders is available to allow the trailer to carry more loads. Customers also can choose either left - or right -or side dumping configuration.
30 Cubic Semi Tipper for Sale in Senegal Dakar
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Sidewall thickness: 4mm
Total volume(m³): 25m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

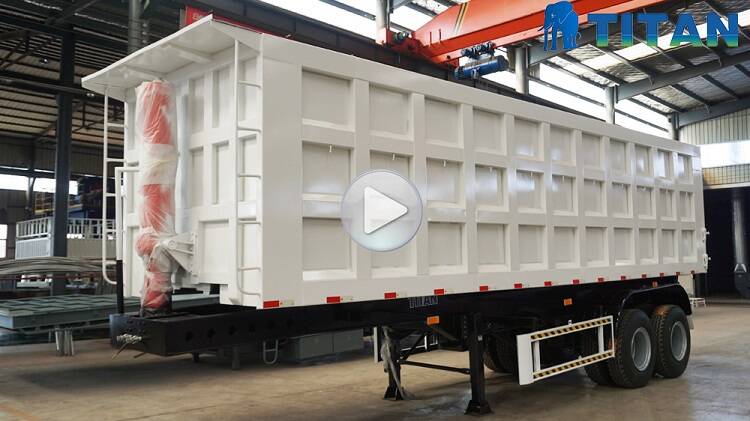

2 Axle tipping Trailer details display video
