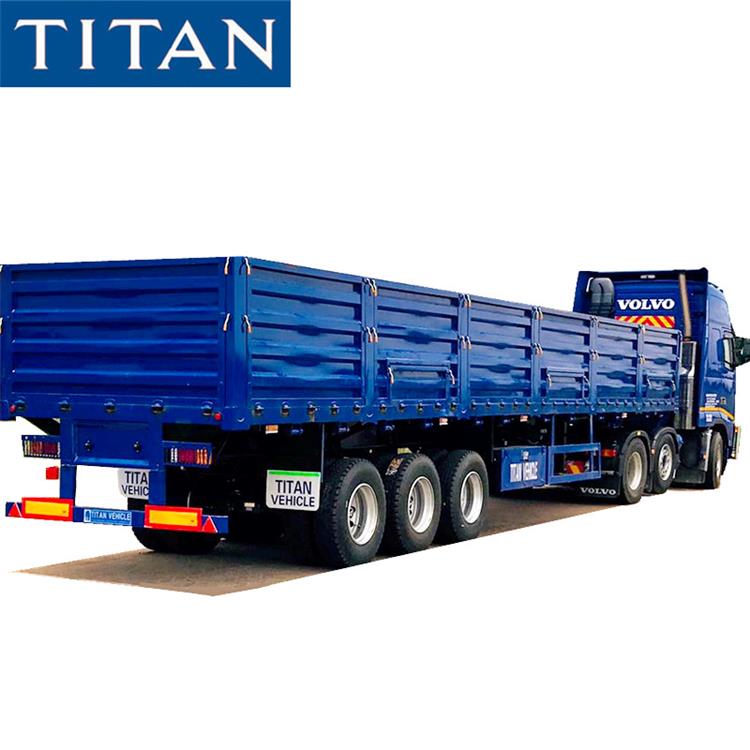

This tri axle side wall grain transport trailer has 1500mm high sideboard. Hight quality side wall with small door, make sure the stable and safety of the loads.
Tri axle side wall grain trailer is a trailer pulled by a truck tractor and used to haul bulk commodity products, such as grain. Side wall trailers are used extensively throughout the Africa to transport agricultural products as well as any other commodity that can be hauled in bulk and loaded and unloaded through the trailer.

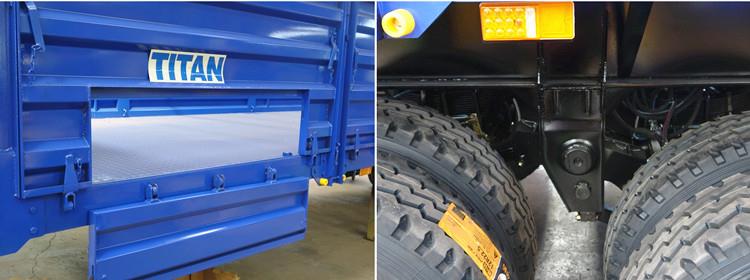

The small door of the tri axle side wall grain trailer facilitates the loading and unloading of grain.
Tri Axle Side Wall Grain Trailer for Sale in Congo - TITAN Vehicle
Tri Axle Side Wall Grain Trailer for Sale in Congo - TITAN Vehicle
Dimension(mm): 13000x2500x3050mm
Trailer Sides: 1500mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Bottom Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Through this video, you can learn about different types of sidewall semi trailers, as well as the process, testing, packaging and customer feedback, etc.
