TITAN VEHICLE is a professional manufacture which have 3 Axle Lowbed Trailer, Lowbed Trailer, Lowbed Trailer for Sale for many years.
This 3 Axle Lowbed Trailer, its dimension is 13000m*3000*1700mm.
This 3 Axle Lowbed Trailer is mainly used for transporting heavy equipment and goods such as excavators, bulldozers, road repair equipment, large stones and wood. This model can bear up to 60 tons.
Details of 3 Axle 60ton Lowbed Trailer for Sale in Senegal
Details of 3 Axle 60ton Lowbed Trailer for Sale in Senegal
1. Titan main beam uses HG60 high strength structural steel, with a yield strength that is equal to or greater than 620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times than that of the trailer made of Q345 steel.

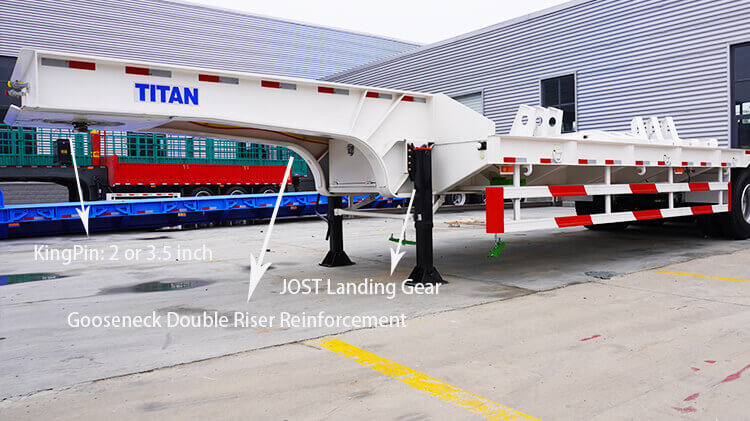

2. The underside of the gooseneck is reinforced with a double-layer vertical plate, so that when the vehicle is heavily loaded, the deformation will be relatively small.
3. The gooseneck has a downward pressure design, which effectively prevents the vehicle from tilting when the vehicle is loaded, and makes climbing easier. And the gooseneck was reinforced with double boxes, a total of 3 reinforcements were carried out.
Model: 3 Axle Lowbed Trailer
Dimension: 13000*3000*1700mm
Capacity: 60T
Axles: 3 axles, 13T axle ( with 16T braking pads )
Material: HG60 high strength steel（Q460C）
Tire: 12R22.5
Rim: 9.00-22.5

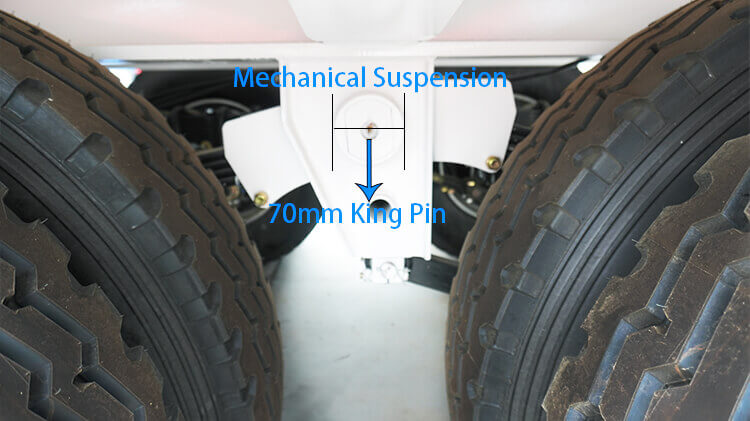

Suspension: Mechanical suspension
Platform: 5mm-thick checkered HSS plate
Main Beam: Q460C steel, Upper plate:20mm, Middle plate:14mm, Bottom plate:20mm,, Height: 500mm
Side Beam: 300mm*140mm H-type(8/6/10mm)
King Pin: JOST 2.0inch or 3.5inch
Landing Gear: Chinese Standard 28tons or JOST
Spring: 10pcs,16mm thick, 900mm wide
