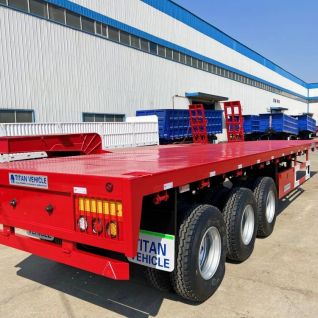

TITAN VEHICLE is a professional manufacturer of flat bed trailer, tripple axle flat bed, flat bed truck trailer 12meter for about 20 years, with rich experience and many manufacturing process advantages.

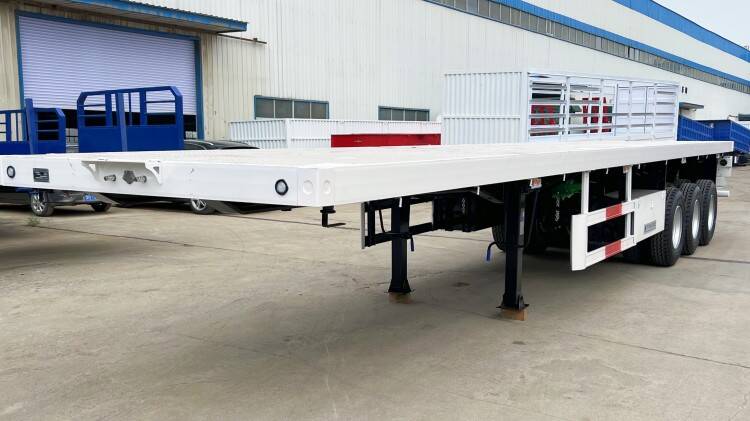

This Flat Bed trailer dimension is 12500m*2500*1530mm. A 40HQ container can hold 2 trailers.
This model can bear up to 60 tons.
Each Flat Bed Truck Trailer 12meter are equipped with 12 high-quality twist locks, so it can be used in many ways. It can transport a 40ft container, or 2*20ft containers. It can also be used to transport many other goods which are easy to be fixed, such as bagged Cargo and metal etc.
Our platform uses thickened 3mm T700 high-strength steel, which improves its service life and has a higher load-bearing capacity. The surface of platform has increased checkered pattern, which greatly increases the anti-slip and wear resistance of the platform.
For the appearance of the vehicle, we use polyurethane paint with high adhesion and high color rendering. Compared with ordinary acid paint, this material can maintain the color of the vehicle for a longer time and protect the body better.
Details of Flat Bed trailer

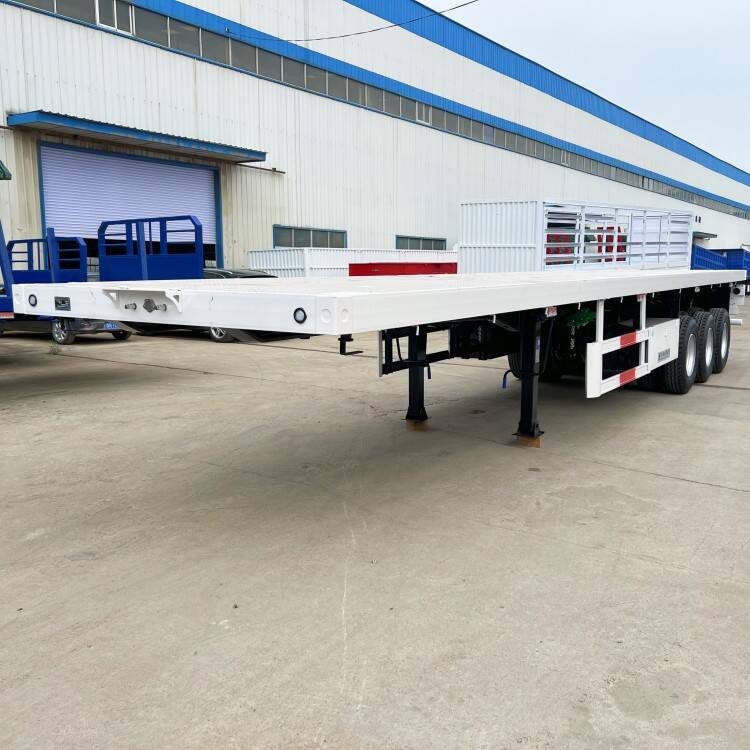

Model: Tripple Axle Flat Bed
Dimension(mm): 12500x2500x1530mm
Loading capacity(ton): ≤60T

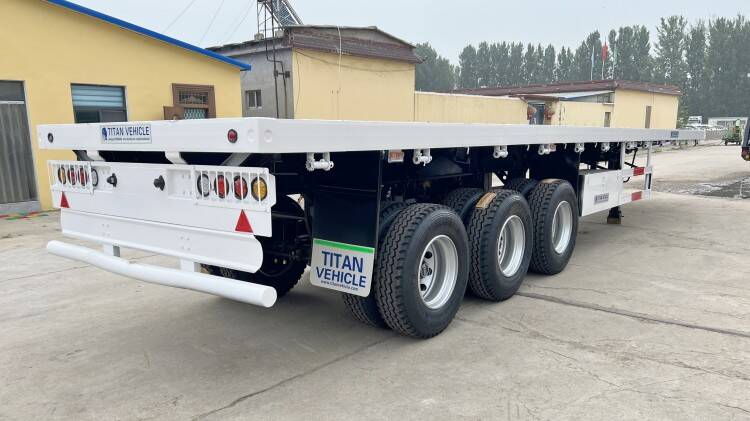

Axles: 3 axles, 13T axle with 16T braking pads

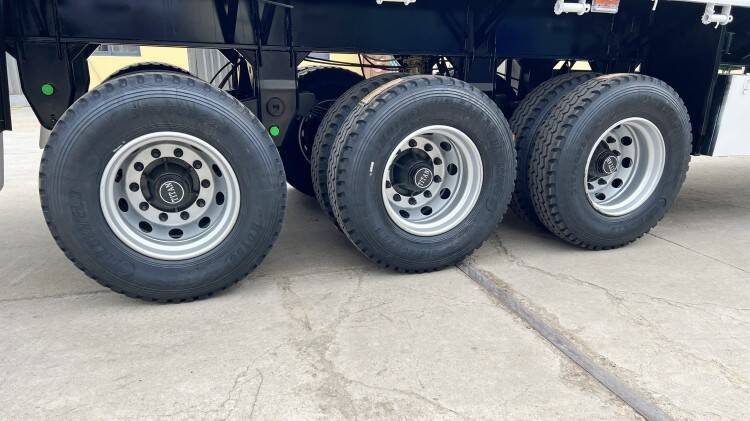

Tire: 12 units, 12R22.5
Rim: 12 units, 9.00-22.5
Suspension: Mechanical suspension/Air suspension
Platform: 3mm-thick checkered HSS plate
Main Beam: Q345B steel, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm,, Height: 500mm
Side Beam: Q235 steel, 16mm or 18mm steel channel
Twist Locks: 12 sets (lifting or screw type)
King Pin: JOST brand 2.0inch or 3.5inch
Landing Gear: JOST brand D200T or Chinese brand 28tons
This flat bed truck trailer 12meter Can be ransported by container, bulk cargo or ro-ro ship for container trailer.

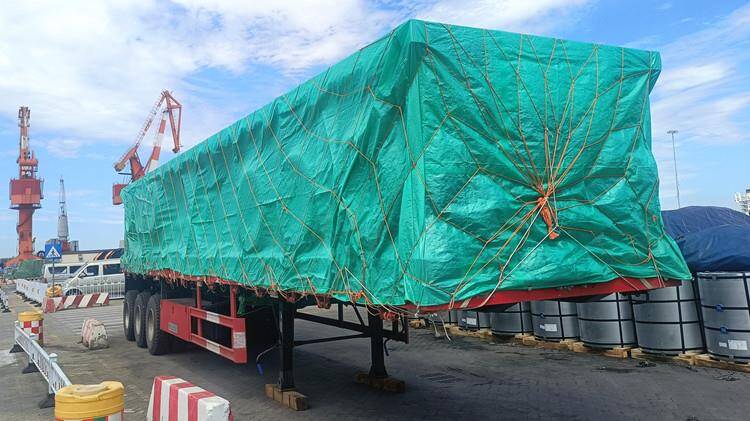

After waxing the trailer, we will also add an extra layer of waterproof cloth to better protect the product.
