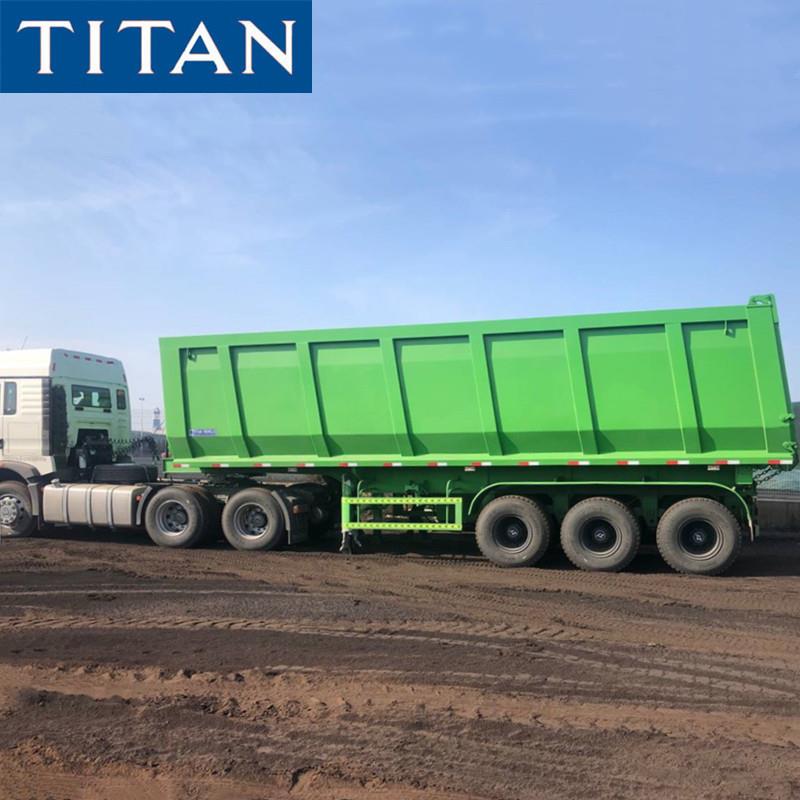

3 Axle Trailer Tipper with 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer tipper.
TITAN different types of 3 Axle Trailer Tipper to meet your different needs, like 3 Axle Dump Tipper Trailer, 40ton dump tipper trailer, 80 ton tipper trailer, 100 ton tipper semi trailer, side dump semi trailer.
In civil engineering, 3 Axle Trailer Tipper often works in conjunction with excavators, loaders, belt conveyors and other construction machinery. The 3 Axle Trailer Tipper carriage adopts rear-dump and side -dump self-unloading methods, which improves the efficiency of the bulk cargo transport by the loader.
3 Axle Trailer Tipper with 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer tipper.
Cost of 3 Axle Trailer Tipper for Sale in Ghana
Detail of 3 Axle Trailer Tipper for Sale
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Sidewall thickness: 4mm
Total volume(m³): 25m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
