Hydrauic 50 Ton Tipper Semi Trailer for Sale cylinders is available to allow the trailer to carry more loads. 50 Ton Tipper Semi Trailer can be custom designed according to customer specific requirements.
Heavy Duty 50 Ton Tipper Semi Trailer is very efficient at transporting and unloading coals, limestone, sand, and other loose materials in bulk. Heavy Duty 50 Ton Tipper Semi Trailer for Sale can be custom designed according to customer specific requirements.
Hydrauic 50 Ton Tipper Semi Trailer for Sale cylinders is available to allow the trailer to carry more loads. Customers also can choose either left - or right -or side dumping configuration.

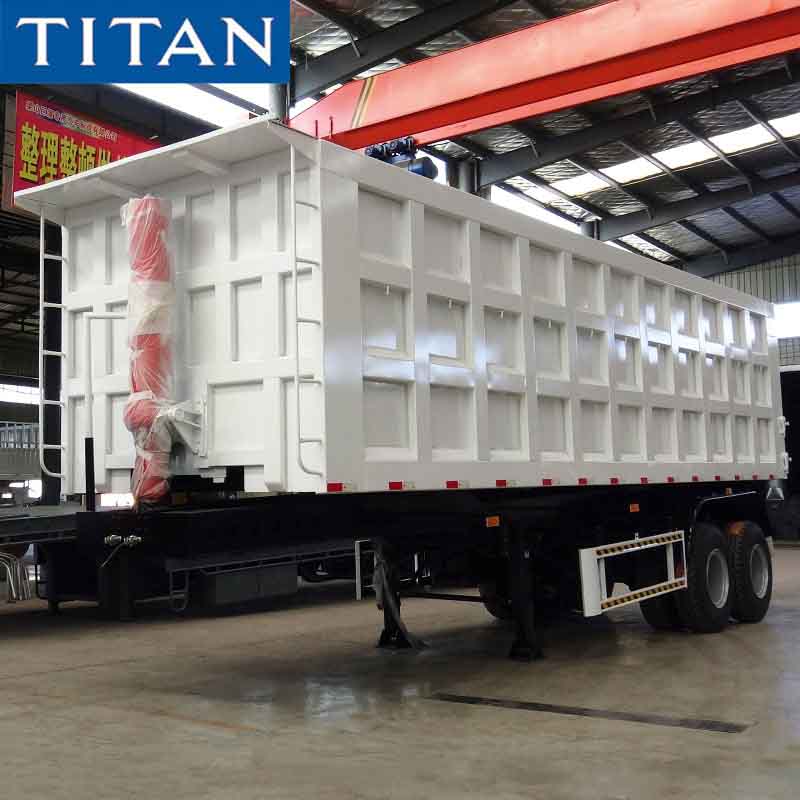

50 Ton Tipper Semi Trailer for Sale in Congo
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Sidewall thickness: 4mm
Total volume(m³): 25m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
