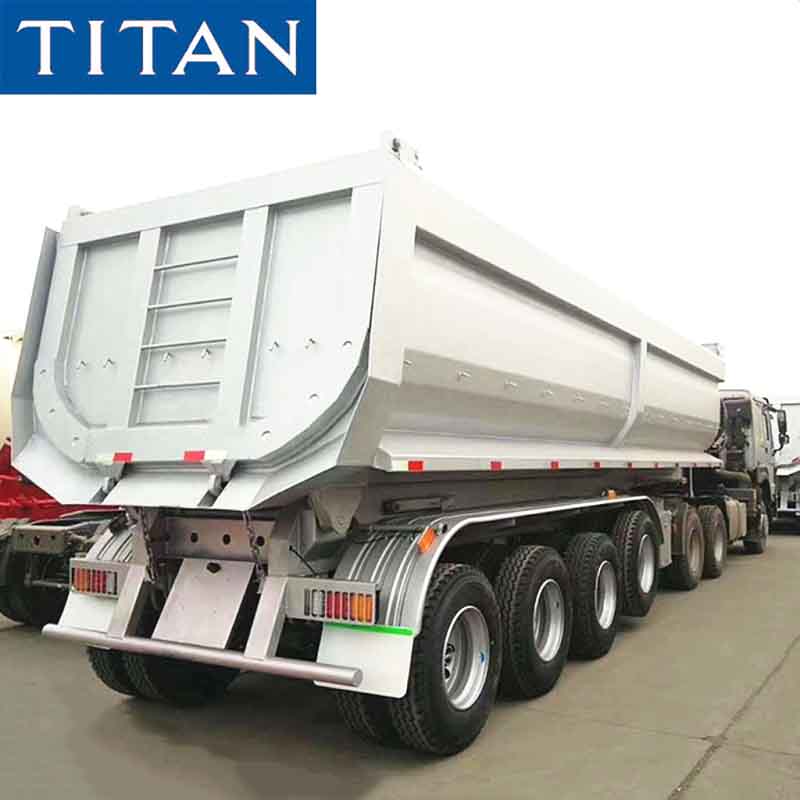

TITAN Heavy Duty Dump Trailers have different load capacities: 24 cubics, 30 cubics, 35 cubics Heavy Duty Dump Trailers.
35cbm Heavy Duty Dump Trailers is very efficient at transporting and unloading coals, limestone, sand, and other loose materials in bulk. 35cbm Heavy Duty Dump Trailers can be custom designed according to customer specific requirements.
TITAN 35cbm Heavy Duty Dump Trailers cylinders are available to allow the trailer to carry more loads. Customers also can choose either left - or right -or side dumping configuration.

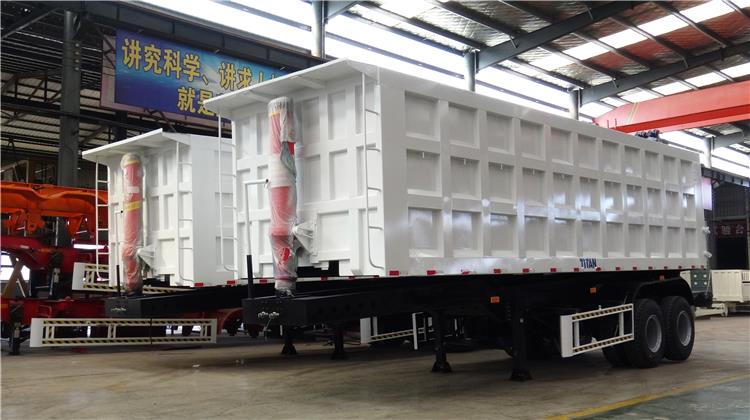

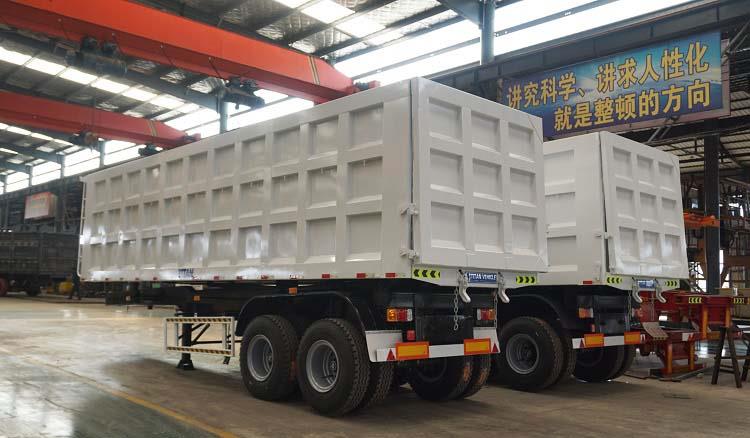

35cbm Heavy Duty Dump Trailers for Sale in Mauritius
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Sidewall thickness: 4mm
Total volume(m³): 25m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set

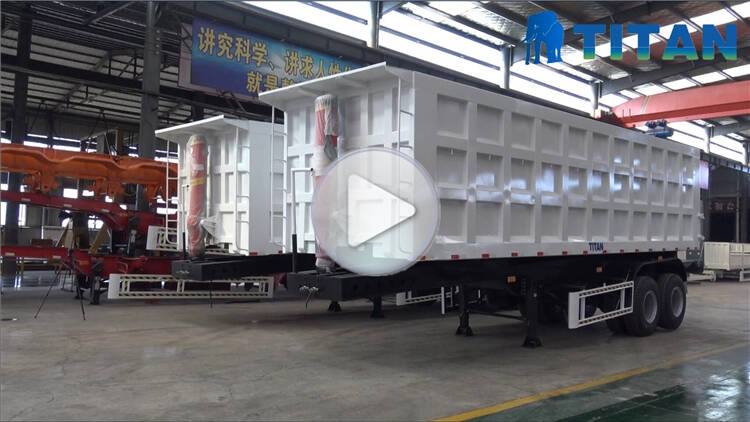

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
