TITAN VEHICLE is a professional manufacturer of Low Bed Semi Trailere for about 20 years, with rich experience and many manufacturing process advantages.
The Low Bed Semi Trailer is a semi-trailer suitable for transporting large machinery and goods. Its platform height is low, which can meet the needs of over-limit width and height. The low-bed design not only improves the efficiency of cargo loading and unloading, but also reduces the risk of overturning during cargo transportation.

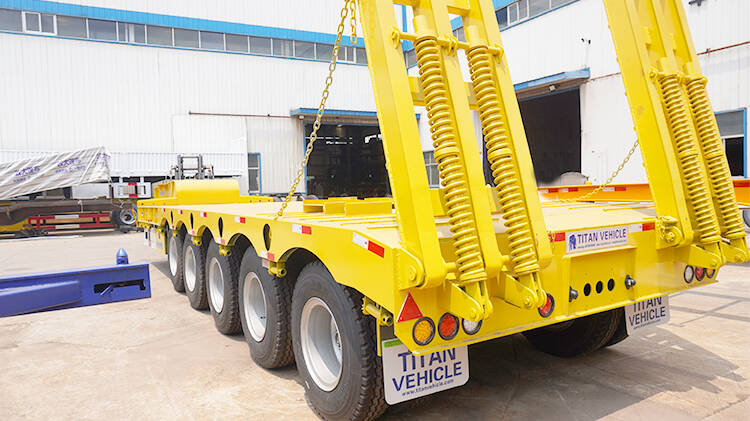

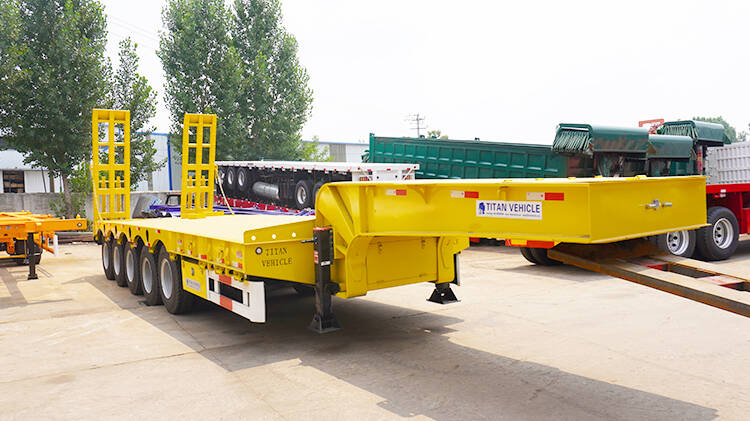

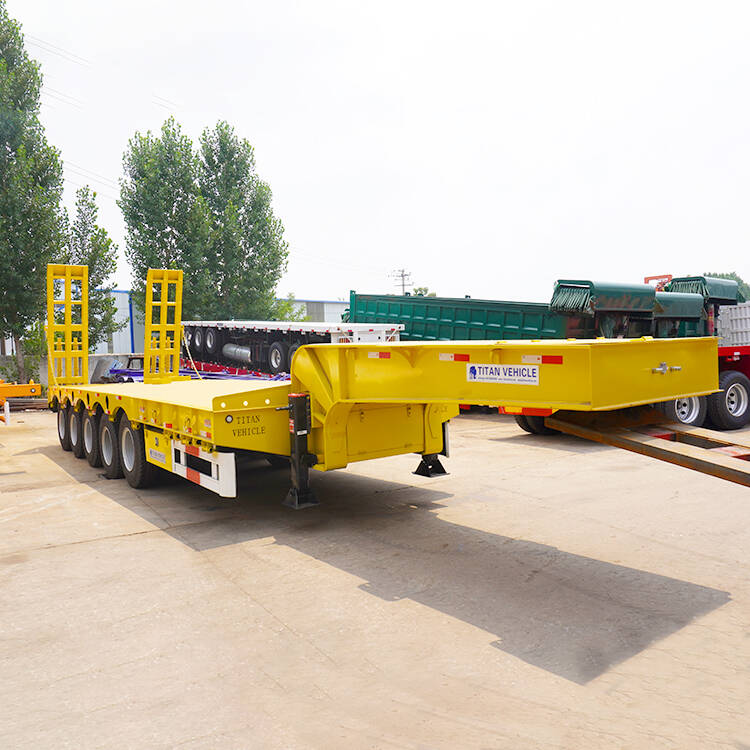

5 Axle Low Bed Semi Trailer for Sale in Nigeria
5 Axle Low Bed Semi Trailer for Sale in Nigeria
1. 5 axleLow bed semi trailer adopts advanced air suspension system, which makes the driving process more stable and has a longer service life. At the same time, it also reduces the vibration and wear of the road to the semi-trailer and goods.
2. The weight of the low bed trailer is lighter than that of ordinary trailers, which reduces fuel consumption and increases the carrying capacity of semi-trailers. This design allows you to save costs during transportation and prolong the service life of the equipment to a certain extent.
3. Low bed semi trailer for sale has additional equipment such as braking system and safety lock in place to ensure driving safety on the road. Due to its design, low-bed vehicles are able to corner and avoid bottlenecks on narrow roads.
Overall dimension: 16000mm * 3000mm *3400mm(depends on final design)
Loading capacity(T): 100T
Axle: 5 axles, 13T/16T, FUWA / BPW Brand

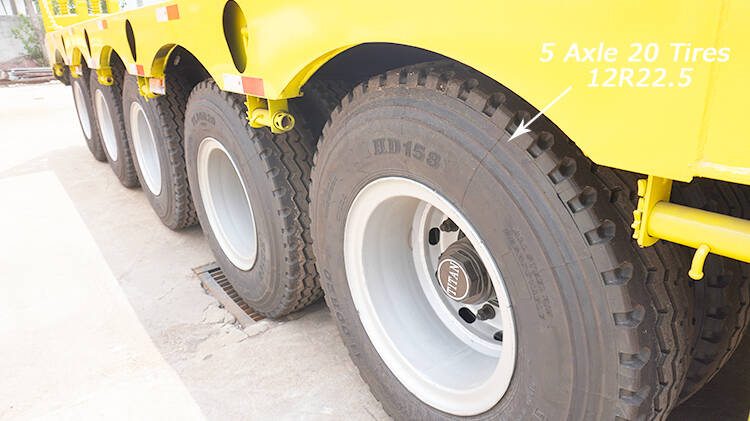

Tire: 20 units, 11.00R20 or 12R22.5
Suspension: Mechanical suspension or Air suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: Standard 28ton or JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: hydraulic type
Valve: WABCO valve
Light: LED light
