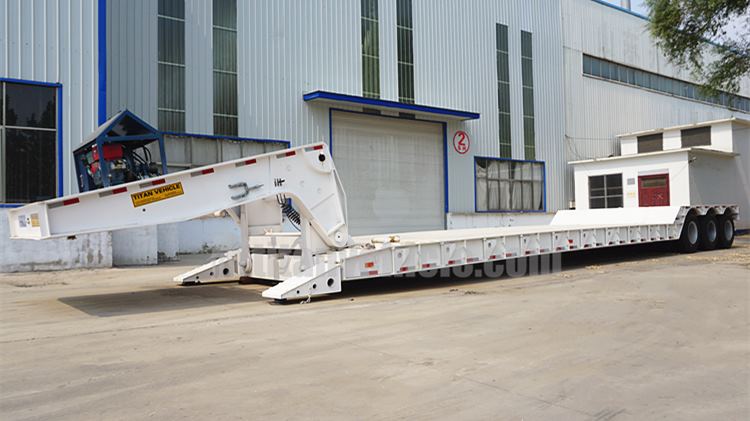

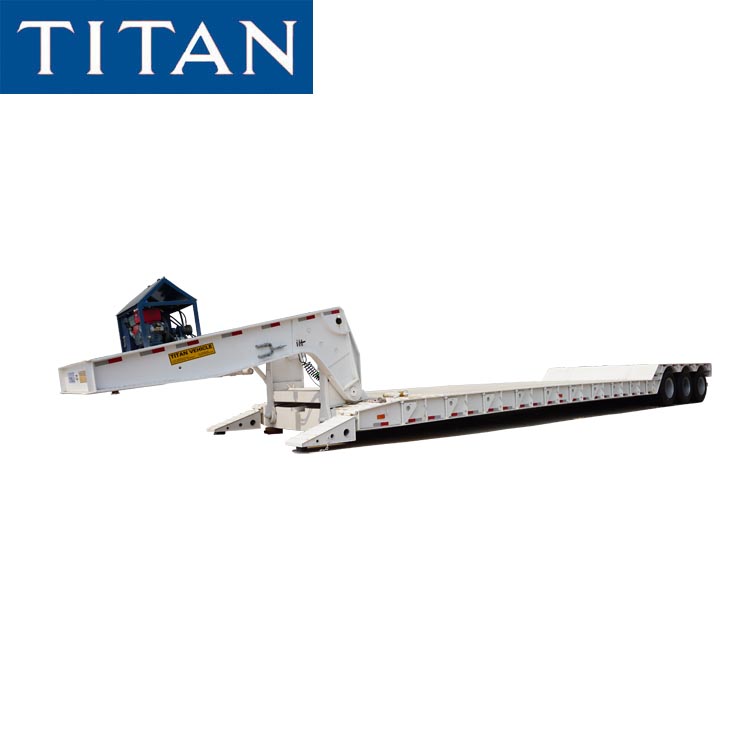

The gooseneck on TITAN 120T Detachable Gooseneck Semi Trailer is hydraulically driven, with automatic lifting and automatic alignment functions.
TITAN detachable gooseneck semi trailers for transport excavator and construction equipment, large machinery transportation. With our increased cylinder stroke you can raise the trailer chassis as high as possible off the ground depending on the truck fifth wheel height. We can make the 2/3/4/6/10 axles lowboy trailers, with the capacity of 60/80/100/120/150 ton.
Dimension: 17000mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 3 line 6 axle
Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

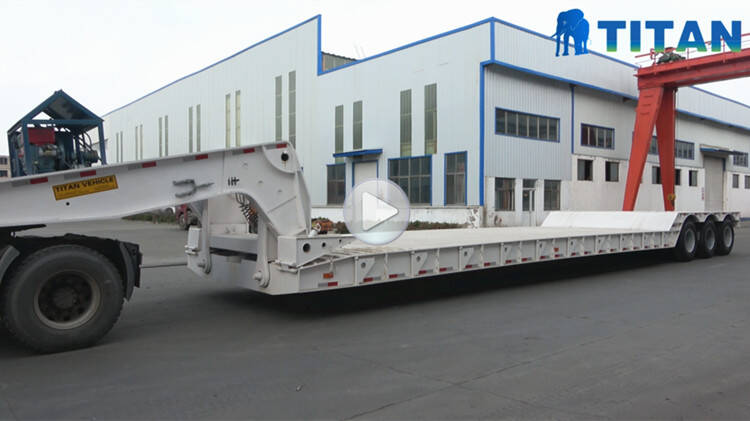

Through the video, you can know different types of 120ton detachable gooseneck semi trailer , 3 line 6 axle lowboy detachable gooseneck , detachable gooseneck semi trailer for sale, etc.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
