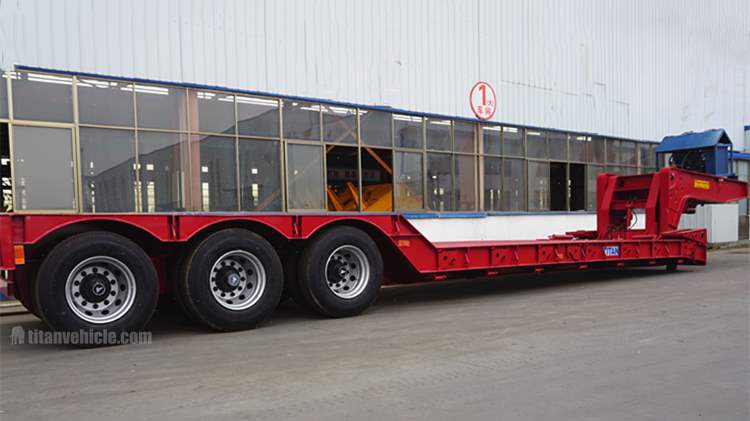

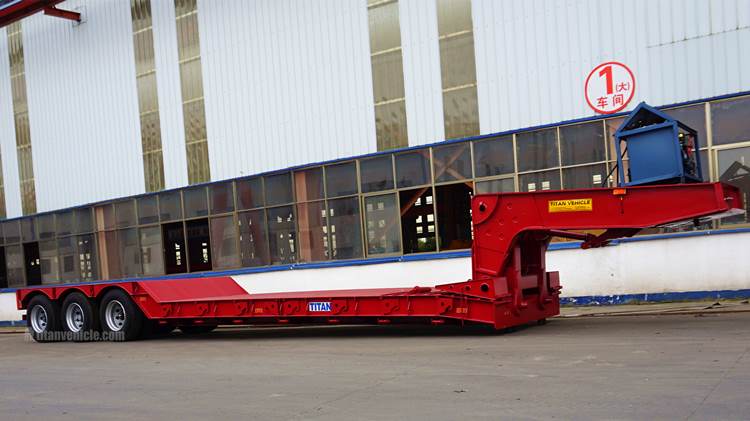

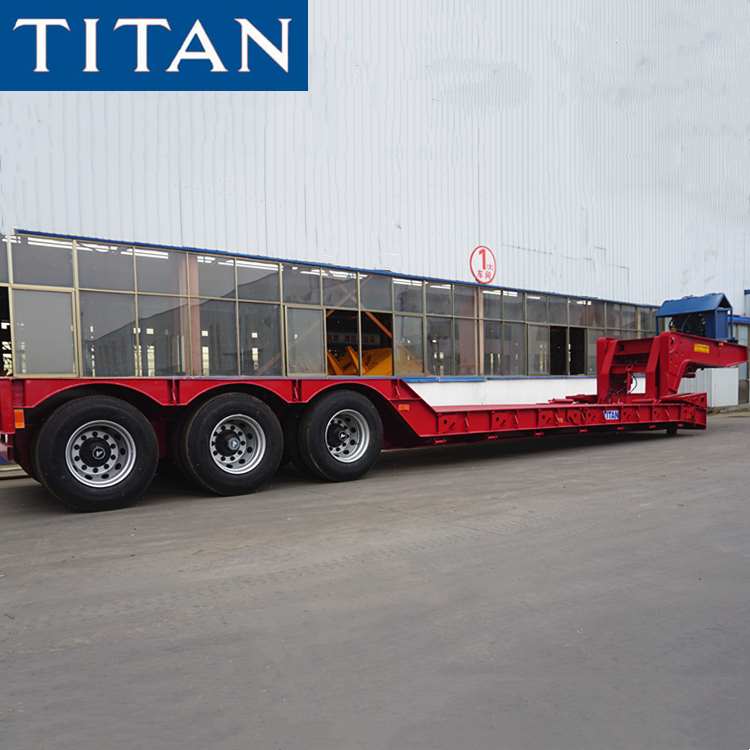

3 Axle 80ton Low Bed Gooseneck Trailers are manufactured in standard capacities of 50 Ton, 60 Ton, 80 Ton, and 120/150 Ton.
TITAN's low bed gooseneck trailers are manufactured in standard capacities of 50 Ton, 60 Ton, 80 Ton, and 120/150 Ton. All models are available in various lengths and axle configurations to accommodate your hauling needs. Furthermore, TITAN offers popular RGN Trailer options that include easy to use aluminum slideouts, outriggers, full width aluminum top deck, lift axles, & flip axles to accommodate your large and oversized equipment.
TITAN Trailer's high quality craftsmanship and attention to detail puts our low bed gooseneck trailers in a class of their own. In addition to using high strength steel, our low bed gooseneck trailers are comprised of four engineered beams that are automatically welded on both sides. As a result, our detachable gooseneck trailers have a high safety rating.
Dimension: 15800mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 900*22.5
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate

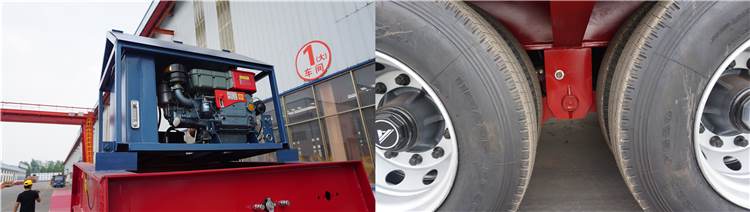

Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

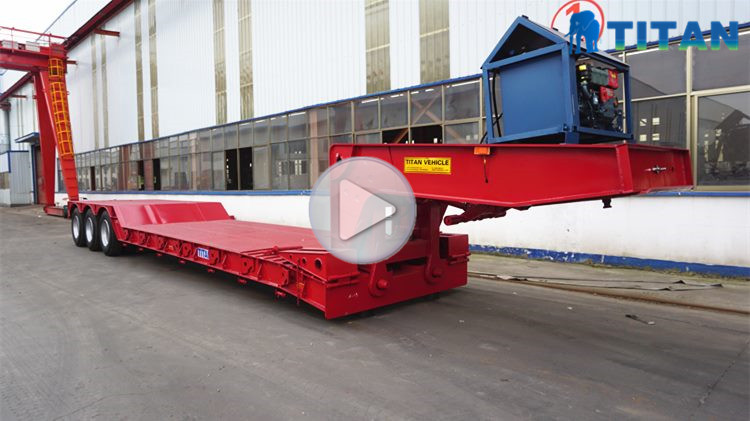

Through the video, you can know different types of 3 axle low bed gooseneck trailer , 80ton lowbed gooseneck trailer , low bed gooseneck trailer for sale, etc.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
