3 Axle Dump Trailer with 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the dump trailer.
TITAN different types of Dump Trailer to meet your different needs, like 3 Axle Dump Tipper Trailer, 40ton dump tipper trailer, 80 ton tipper trailer, 100 ton tipper semi trailer, side dump semi trailer.
In civil engineering, 3 Axle Dump Trailer often works in conjunction with excavators, loaders, belt conveyors and other construction machinery. The dump trailer carriage adopts rear-dump and side -dump self-unloading methods, which improves the efficiency of the bulk cargo transport by the loader.
3 Axle Dump Trailer with 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the dump trailer.

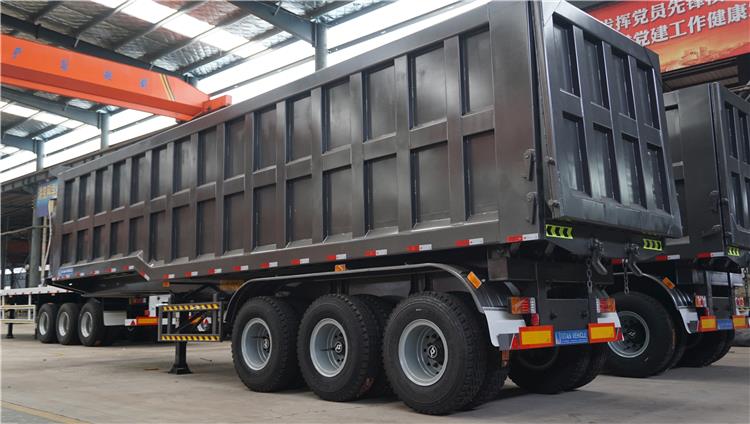

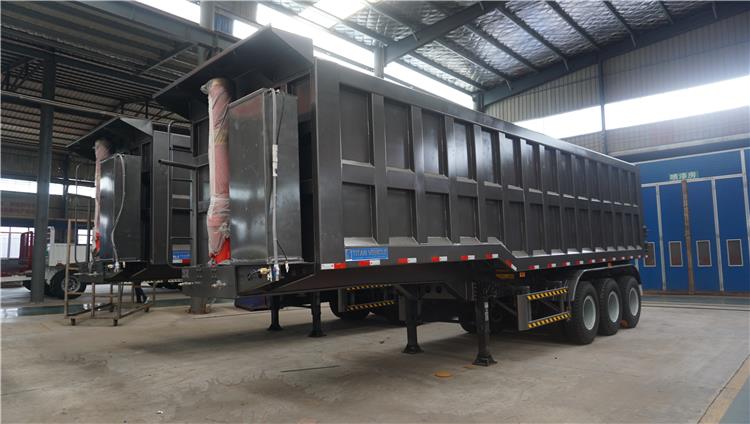

Heavy Duty 80 Ton Dump Trailer Prices in Uganda Kampala

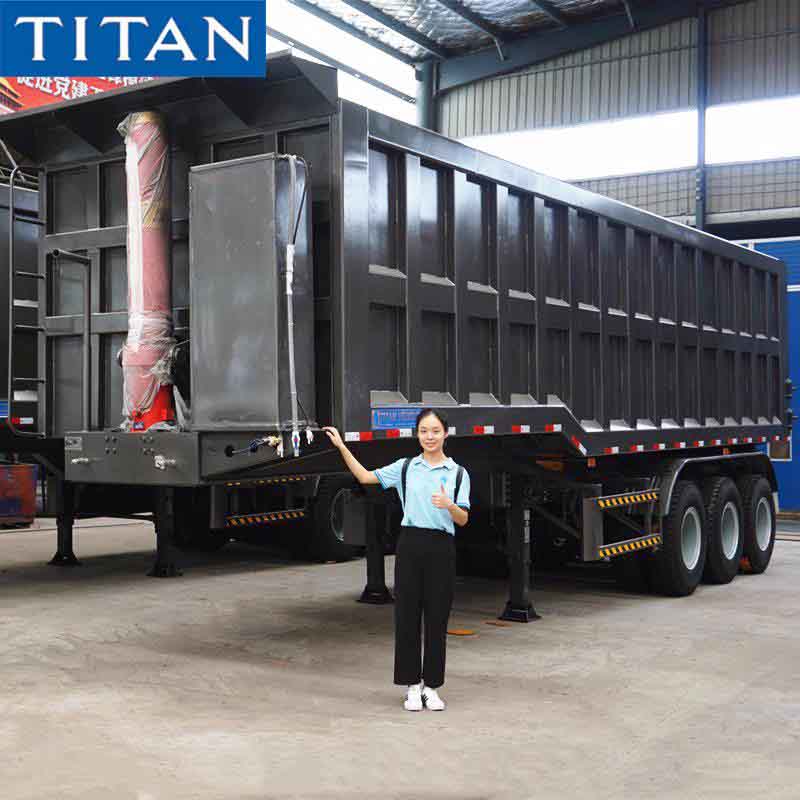

80 Ton Dump Trailer for sale Prices
1. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
2. Double-plate main beam for tipper semi trailer, which has a stronger carrying capacity, it is not easy to damage.
3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.
4. The leaf spring is widened and thickened, the shock absorption effect is good.
5. Strengthened Ribs, unique structure design to maximize the payload.
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Sidewall thickness: 4mm
Total volume(m³): 25m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set

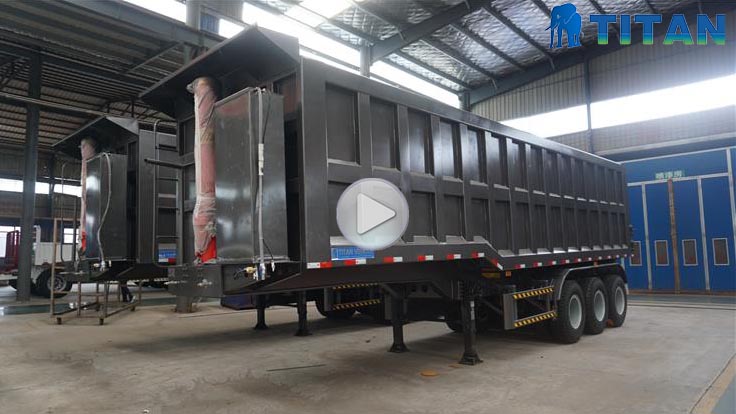

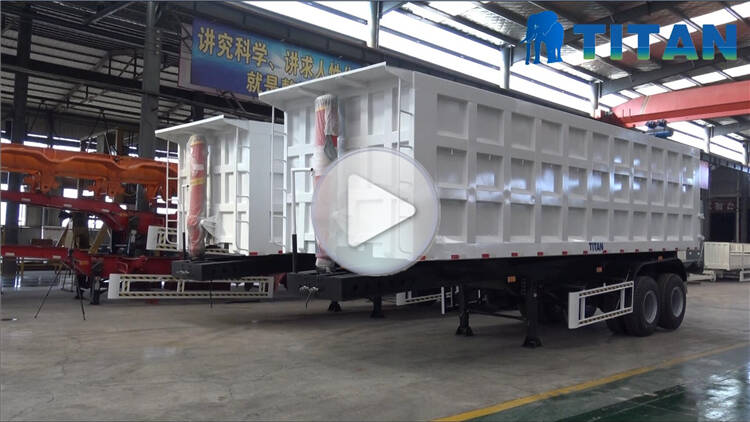

3 Axle 80 Ton Tipper Semi Trailers details video
Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
