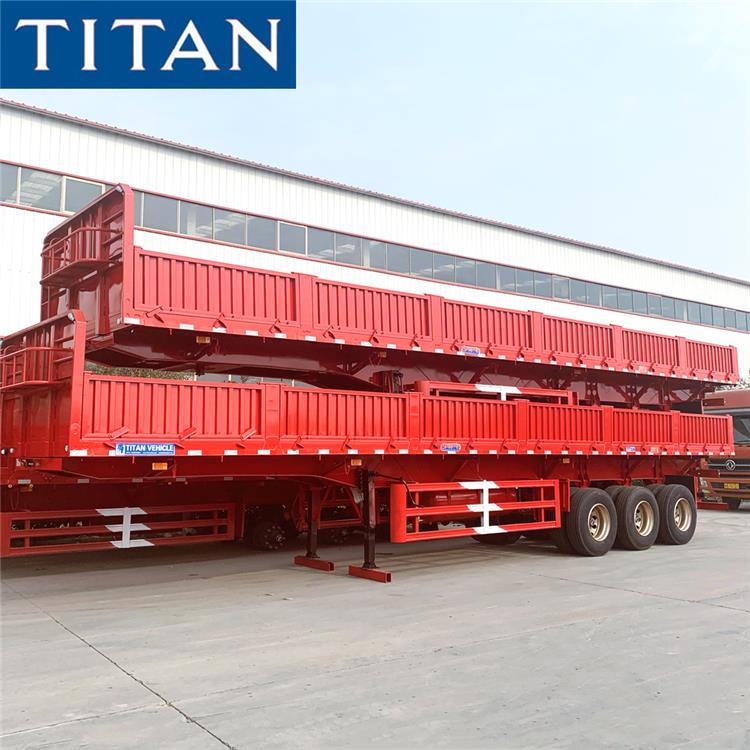

This removable side wall trailer has 600mm sideboard. Hight quality side wall, make sure the stable and safety of the loads.
TITAN Removable Side Wall Trailer is your ideal partner for multipurpose solution catering to vast range of applications including Cement Bags, Agri bags, Tiles, Jumbo bags, steel coils, pet coke, etc.
Its higher payload carrying capacity, better mileage and availability of different product variants catering to varying customer's needs. The vehicle provides you with longer tyre life, high fuel efficiency and less maintenance cost which gives you higher revenue and lower operating cost, substantially increasing your overall profit.
With ability to carry heavy loads with utmost ease and OEM assured body warranty, TITAN removable side wall trailer is an ideal choice for your business.

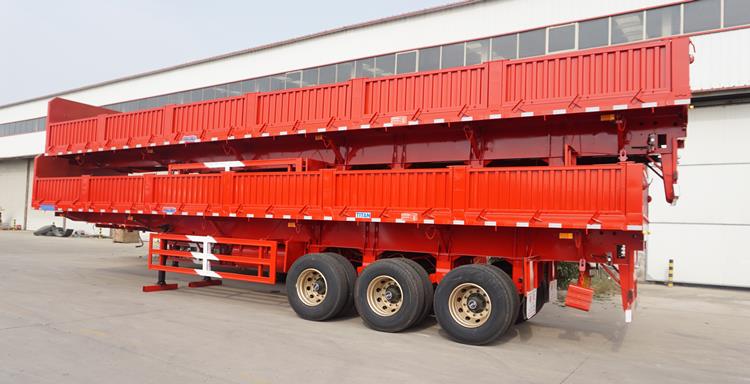

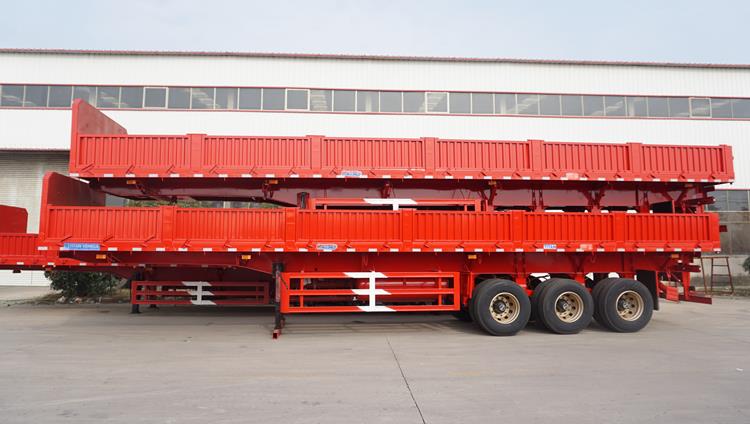

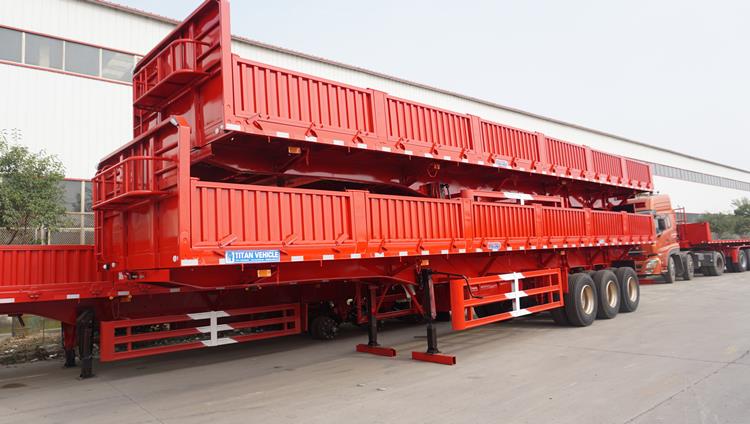

Removable Side Wall Trailer for Sale in Djibouti - TITAN Vehicle
Removable Side Wall Trailer for Sale in Djibouti - TITAN Vehicle
Dimension(mm): 12500x2500x2150mm
Trailer Sides: 600mm, or box type sides
Loading capacity(ton): ≤40T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
TITAN ship nearly 150 units removable side wall trailers and fence semi trailers to Sudan every year. China side wall trailer is very popular in Sudan.
This customer has been working with us in 2018, and it has been almost three years. In 2018, he visited China, looking for suppliers for his own business. Customers visited 6 factories including us. After a series of comparisons and discussions with customers. Finally, TITAN was chosen as a long-term partner.
The latest batch of 12 units 40 ton bulk cargo trailer will be sent to Sudan.
Through this video, you can learn about different types of sidewall semi trailers, as well as the process, testing, packaging and customer feedback, etc.
