TITAN different types of Tri Axle Tip Trailer to meet your different needs, like Tri Axle Tip Trailer, 50ton dump tipper trailer, 80 ton tipper trailer, side dump semi trailer.
TITAN different types of Tri Axle Tip Trailer to meet your different needs, like Tri Axle Tip Trailer, 50ton dump tipper trailer, 80 ton tipper trailer, 100 ton tipper semi trailer, side dump semi trailer.
In civil engineering, Tri Axle Tip Trailer often works in conjunction with excavators, loaders, belt conveyors and other construction machinery. The Tri Axle Tip Trailer carriage adopts rear-dump and side -dump self-unloading methods, which improves the efficiency of the bulk cargo transport by the loader.
Tri Axle Tip Trailer with 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the tip trailer.

50 Ton Tri Axle Tip Trailer for Sale near me in Guyana

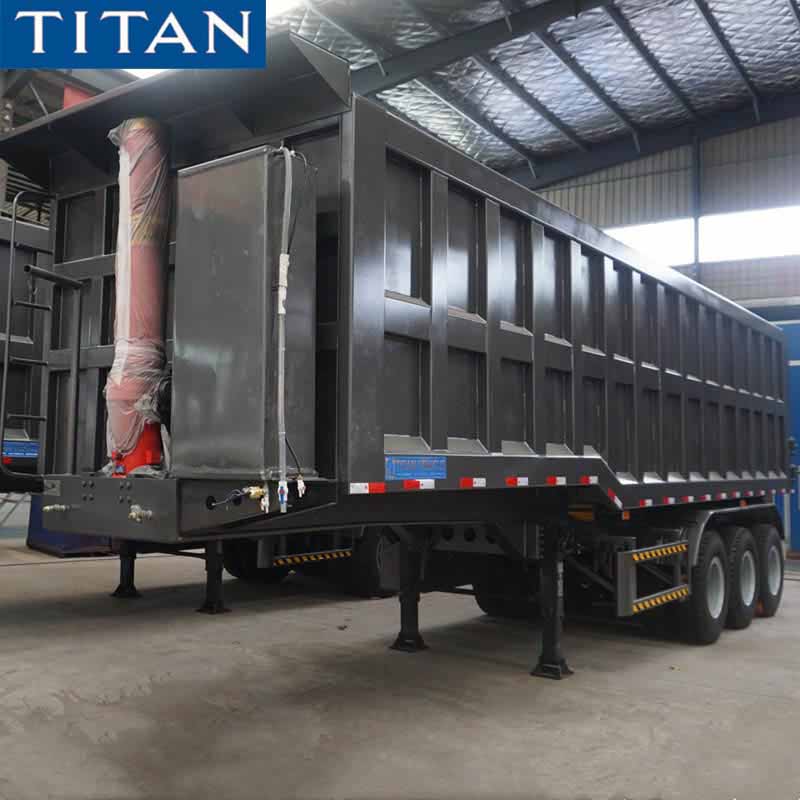

50 Ton Tri Axle Tip Trailer for Sale

Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Sidewall thickness: 4mm
Total volume(m³): 25m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
3 Axle 80 Ton Tip Semi Trailers details video
Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
