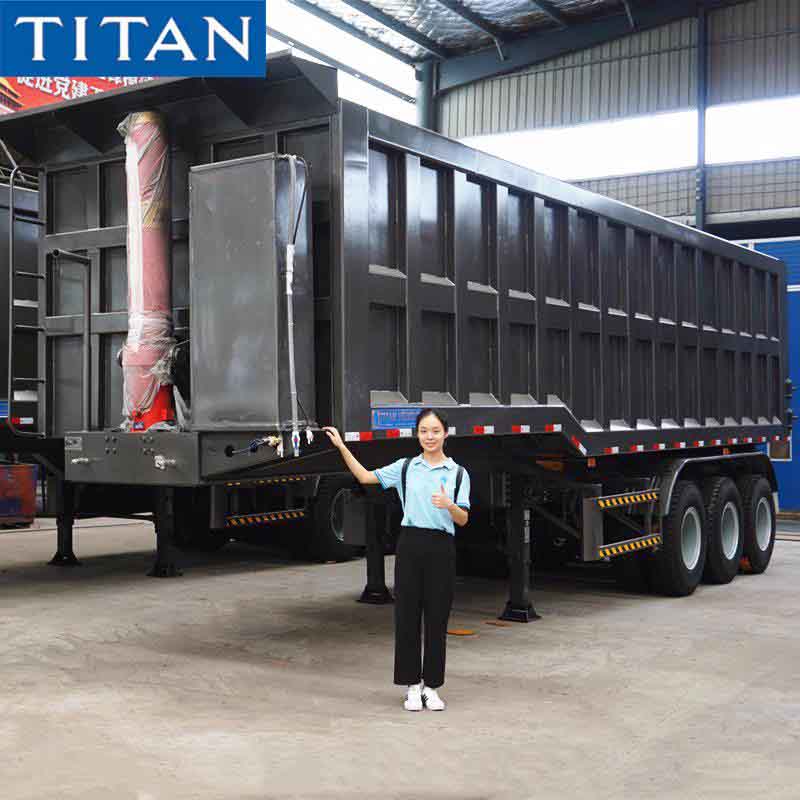

50 Ton Tipper Trailer is a big trailer that usually lifts when dumping its hall in a chosen location. TITAN 50 Ton Tipper Trailer adopt Submerge-arc welding.
50 Ton Tipper Trailer are big trailer that usually lifts when dumping its hall in a chosen location. 3 Axle Tipper Trailer for Sale will help you to carry and offload bulk goods in a very easy and efficient manner, your operations will be highly affordable.
TITAN 50 Ton Tipper Trailer adopt Submerge-arc welding, The protective effect of the slag insulation when isolated air is good, the welding parameters could keep stable by automatic adjustment, the weld composition is stable and the mechanical performance is better.

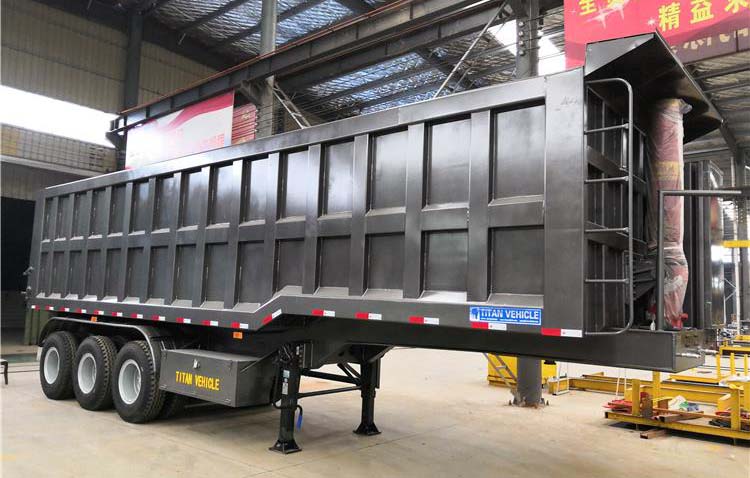

50 Ton Tipper Trailer for Sale In Nigeria Lagos

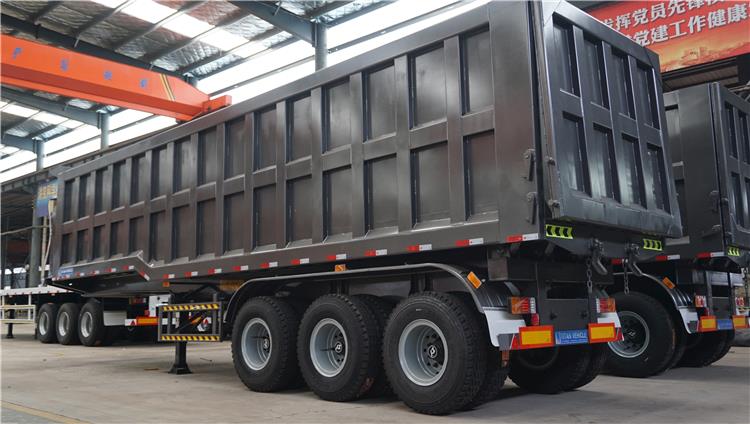

Tri Axle Tipper Trailer for Sale Price

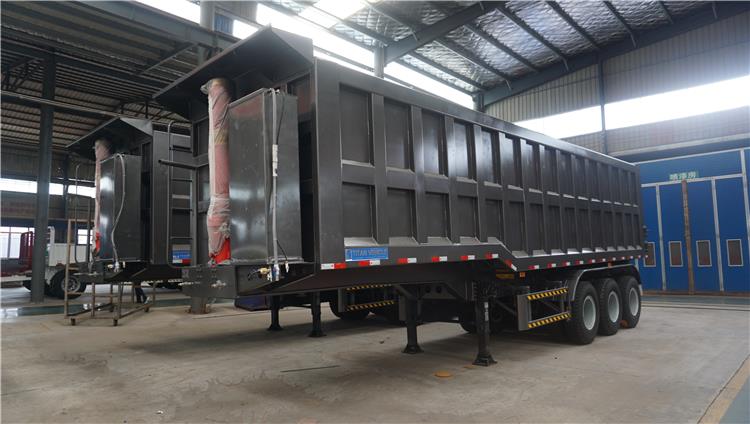

3 Axle Tipper Semi Trailer for Sale Manufacturer
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 35m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
