TITAN Hydraulic 24cbm Tipper Trailer for Sale has different load capacities and different types of tipper trailer, end dump trailer, u shape tipper trailer.
The Hydraulic 24cbm Tipper Trailer for Sale could bear the bad road conditions. We reinforce the sides with high tensile strengthening rip and the channel steel reinforced enclosure shape design.
The sides are welding molding which increasing the loading capacity. The Hydraulic 24cbm Tipper Trailer for Sale could be used for nearly 10 years. TITAN Hydraulic 24cbm Tipper Trailer for Sale has different load capacities: 24 cubics, 30 cubics, 35 cubics, 45 cubics, We can customize the tipper trailers according to your special need.

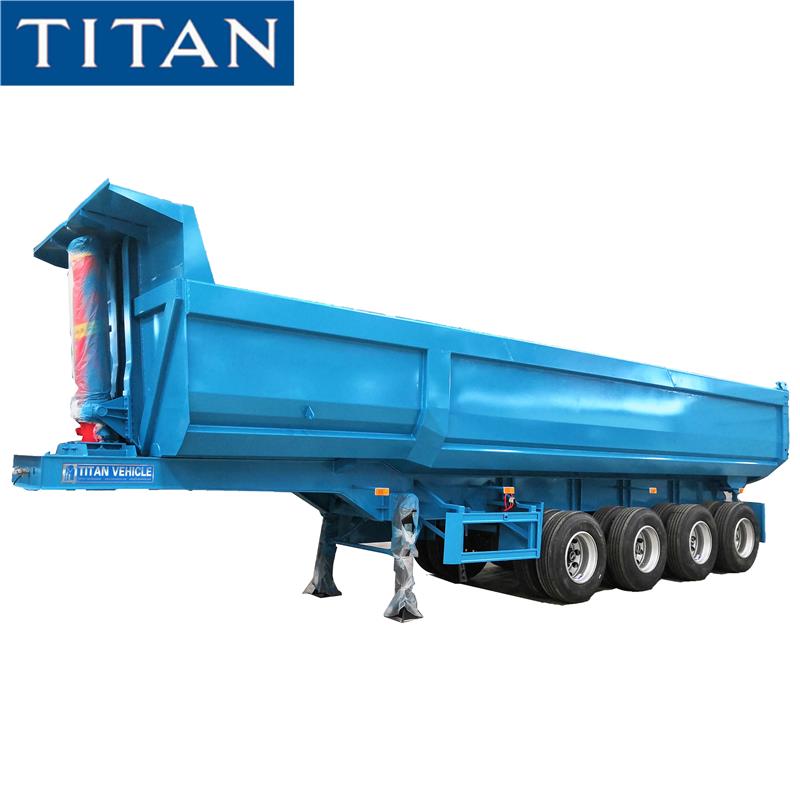

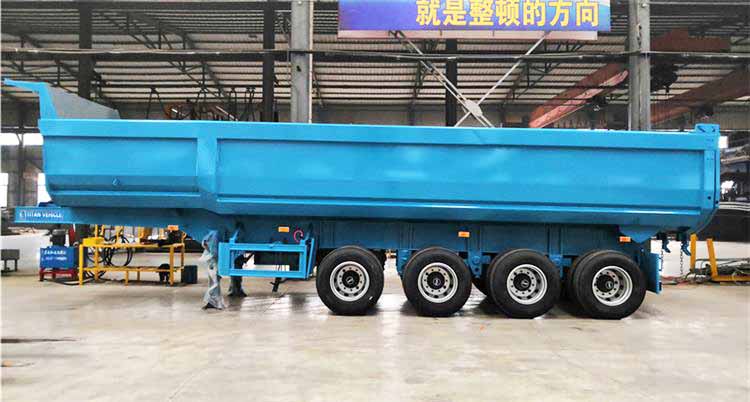

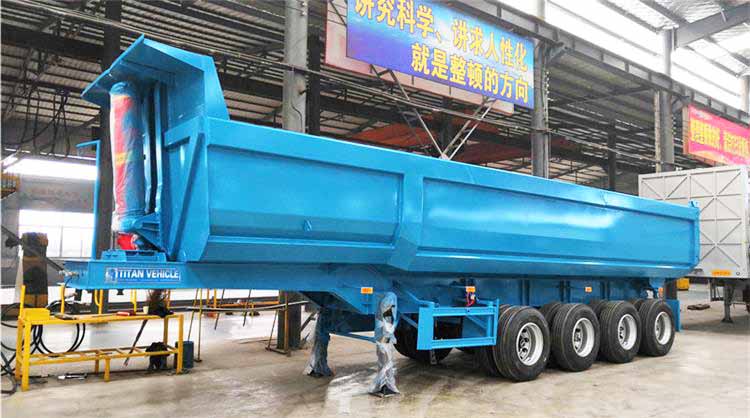

Hydraulic 24cbm Tipper Trailer for Sale

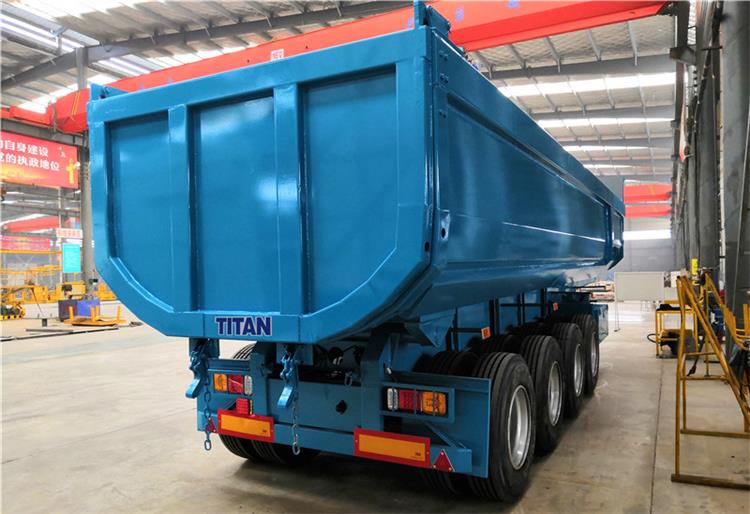

24cbm Tipper Trailer for Sale in Kenya Mombasa
Dimension: 9300mmx2500mm x3700mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 30m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Toolbox: 1 set

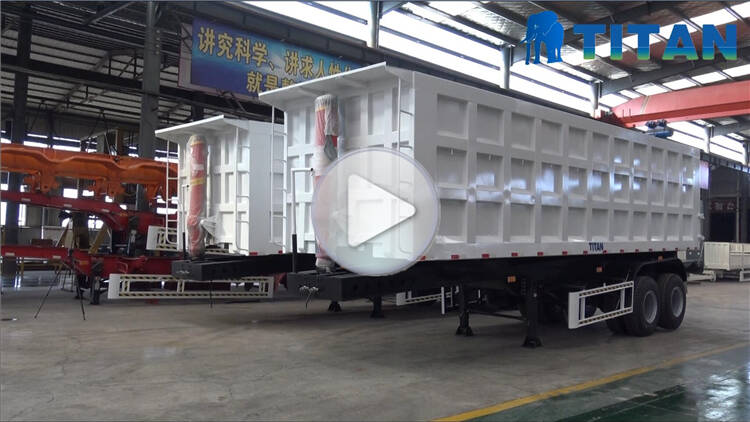

Through the video below, you can learn about different types of tipper semi trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer. And the process, testing, packaging and customer feedback, etc.
