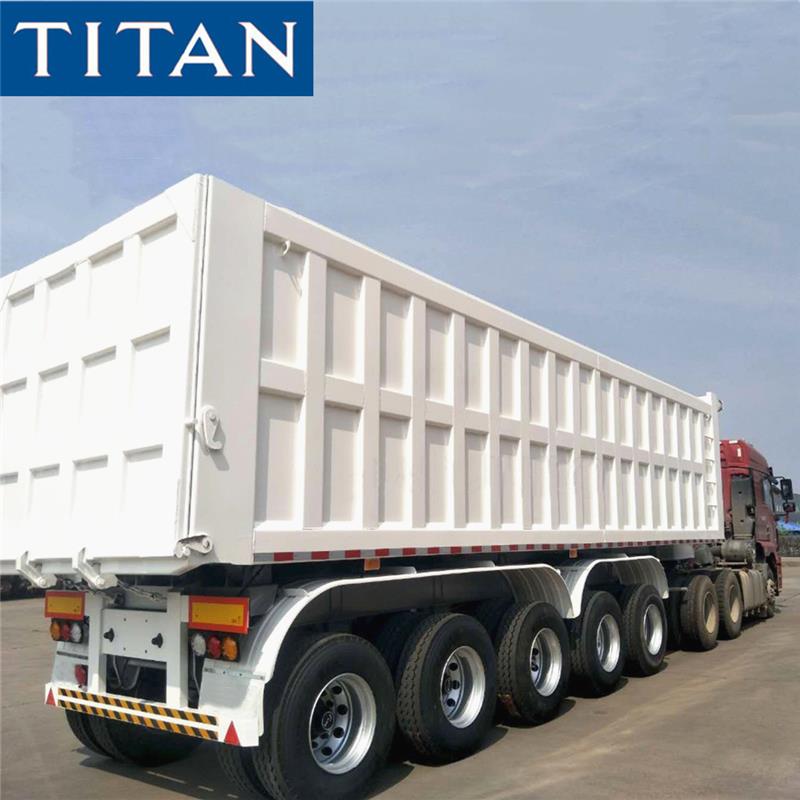

80 Ton Rear Dump Semi Trailer is also called semi tipper trailer. 5 Axle 80 Ton Rear Dump Semi Trailer for Sale is usually used to carry building materials such as sand, stones, etc.
80 Ton Rear Dump Semi Trailer will help you move and unload bulk cargo in a very simple and effective way. Especially when dealing with large jobs. Through carefully designed unloading mechanism, operation safety can be well maintained.
80 Ton Rear Dump Semi Trailer for Sale is also called semi tipper trailer. 5 Axle 80 Ton Rear Dump Semi Trailer for Sale is usually used to carry building materials such as sand, stones, etc.
80 Ton Rear Dump Semi Trailer for Sale in Dominica
Dimension: 11000mmx2500mm x4000mm
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 30m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
