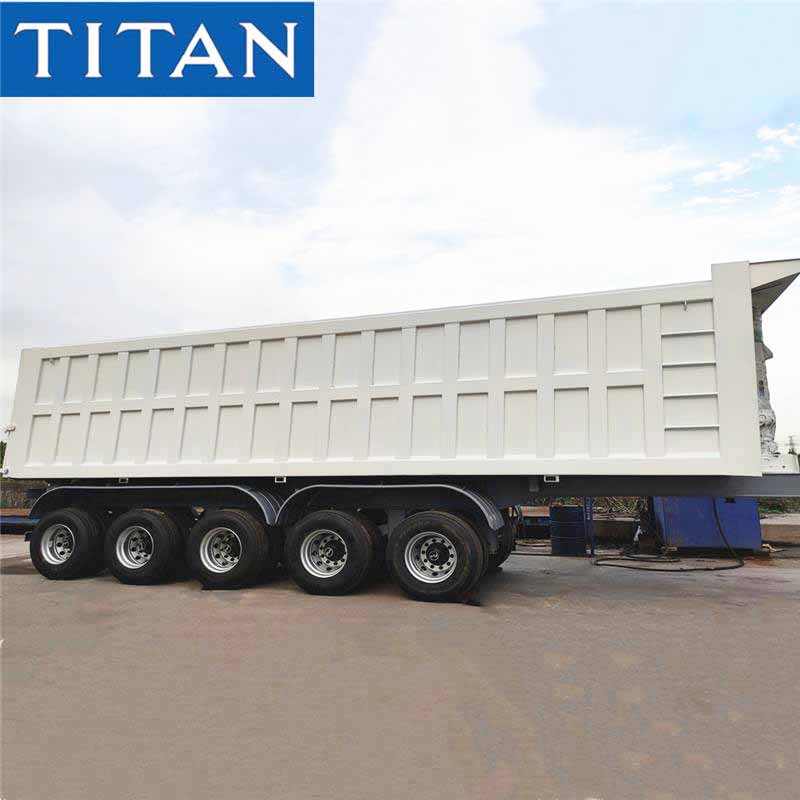

5 Axle Dump Truck Trailer for Sale is also called semi tipper trailer. China 5 Axle Dump Truck Trailer for Sale is usually used to carry building materials such as sand, stones, etc.
45cubic 5 Axle Dump Truck Trailer will help you move and unload bulk cargo in a very simple and effective way. Especially when dealing with large jobs. Through carefully designed unloading mechanism, operation safety can be well maintained.
5 Axle Dump Truck Trailer for Sale is also called semi tipper trailer. 5 Axle Dump Truck Trailer for Sale is usually used to carry building materials such as sand, stones, etc.

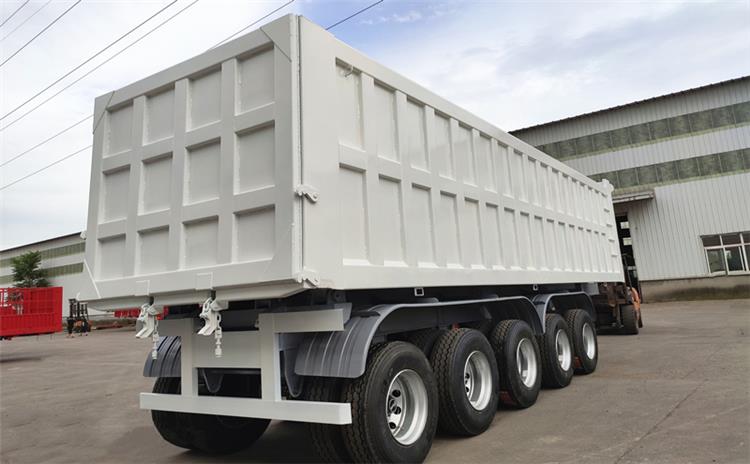

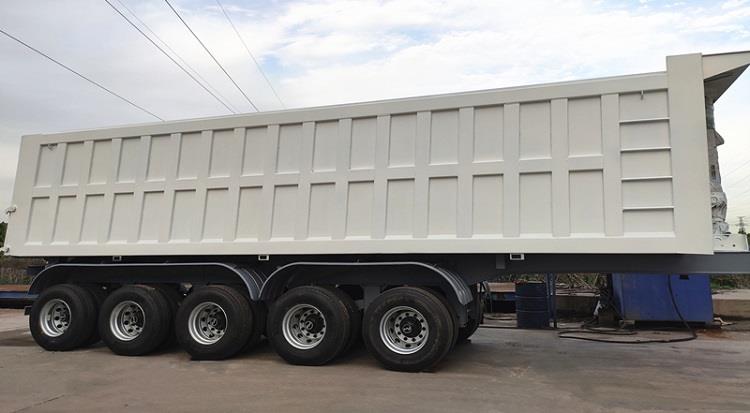

5 Axle Dump Truck Trailer for Sale in Philippines
Dimension: 11000mmx2500mm x4000mm
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 30m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set

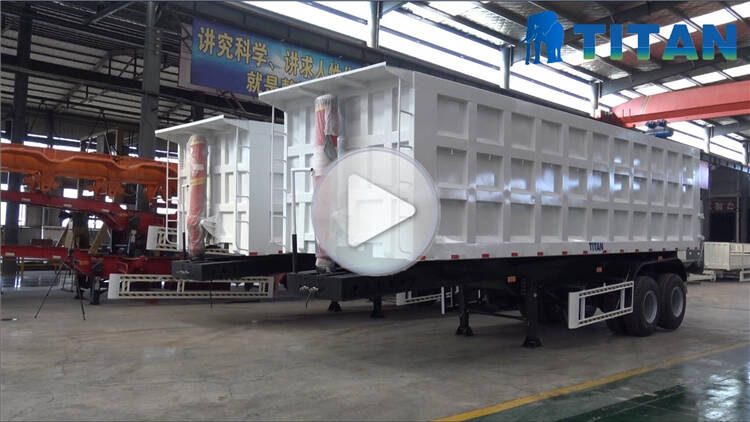

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
