60 Ton Tipper Trailer for Sale adopts high strength steel T700, TITAN provides different types of tipper semi trailers.
60 Ton Tipper Trailer for sale adopts high strength steel T700, offering all the durability of high-tensile-strength steel and unique structure design to maximize payload to increase your profitability.
60 Ton Tipper Trailer for sale adopt Submerge-arc welding, The protective effect of the slag insulation when isolated air is good, the welding parameters could keep stable by automatic adjustment, the weld composition is stable and the mechanical performance is better.

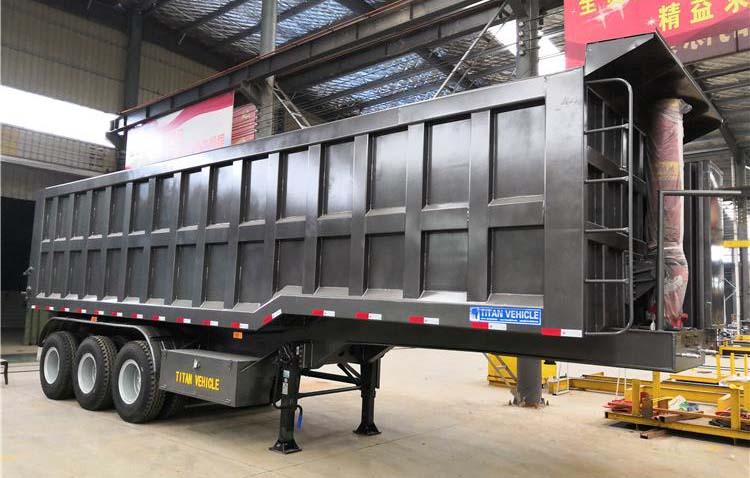

60 Ton Tipper Trailer for Sale Near Me Price In Zimbabwe

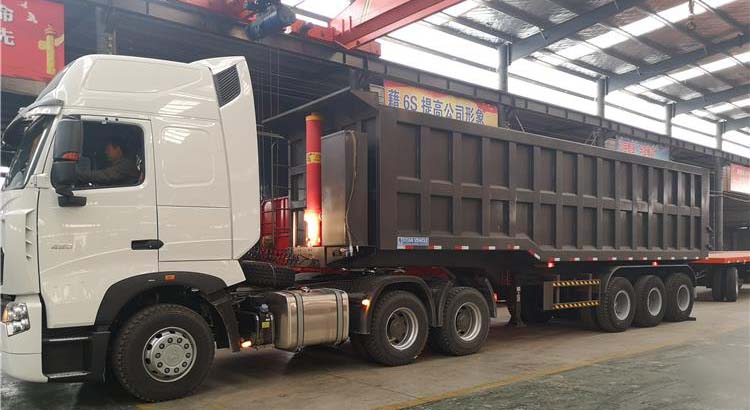

Tri Axle Tipper Semi Trailer for Sale Price

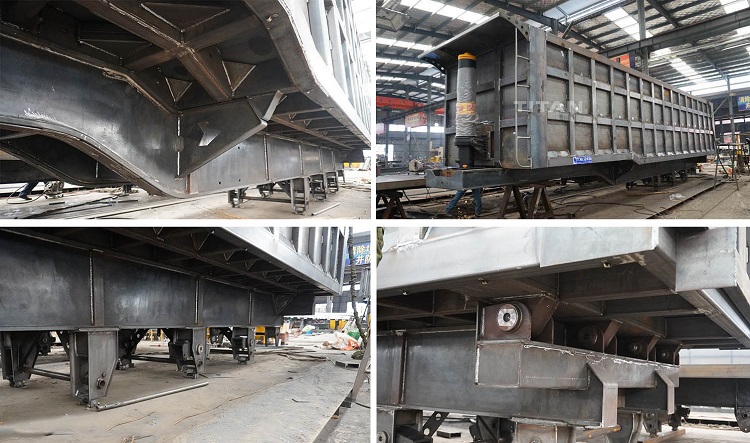

Details of 60 Ton Tipper Trailer
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Sidewall thickness: 4mm
Total volume(m³): 35m³
Endplate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (especially intended for overseas markets)
Voltage: 24V
Toolbox: 1 set
3 Axle 80 Ton Tipper Semi Trailers details video
Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
