TITAN different types of rock dump trailer to meet your different needs, like 3 Axle Dump Tipper Trailer, 40ton dump tipper trailer, 80 Ton Rock Dump Trailer, 100 ton tipper semi trailer, side dump semi trailer.
TITAN different types of rock dump trailer to meet your different needs, like 3 Axle Dump Tipper Trailer, 40ton dump tipper trailer, 80 Ton Rock Dump Trailer, 100 ton tipper semi trailer, side dump semi trailer.

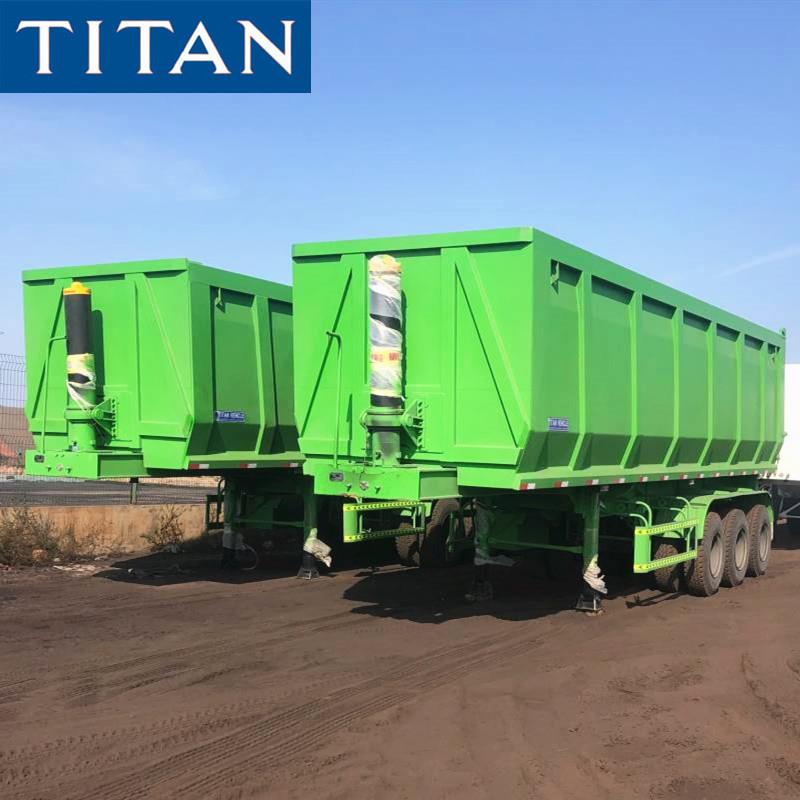

In civil engineering, 80 Ton Rock Dump Trailer often works in conjunction with excavators, loaders, belt conveyors and other construction machinery. The 80 Ton Rock Dump Trailer carriage adopts rear-dump and side -dump self-unloading methods, which improves the efficiency of the bulk cargo transport by the loader.

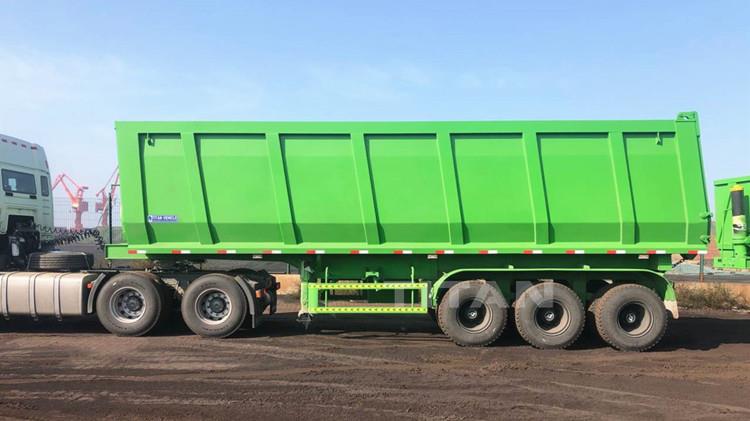

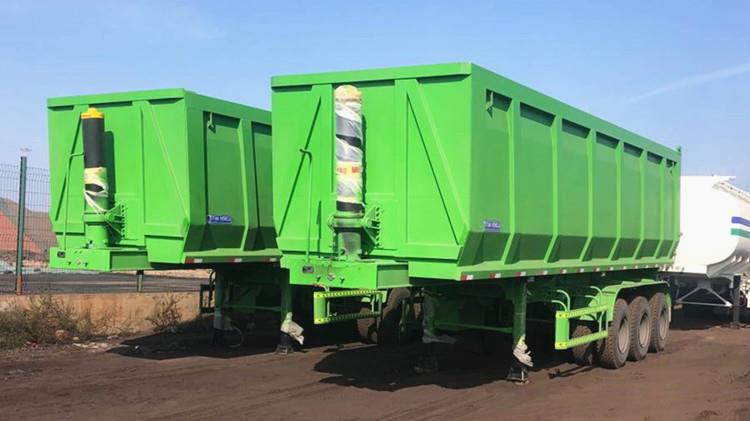

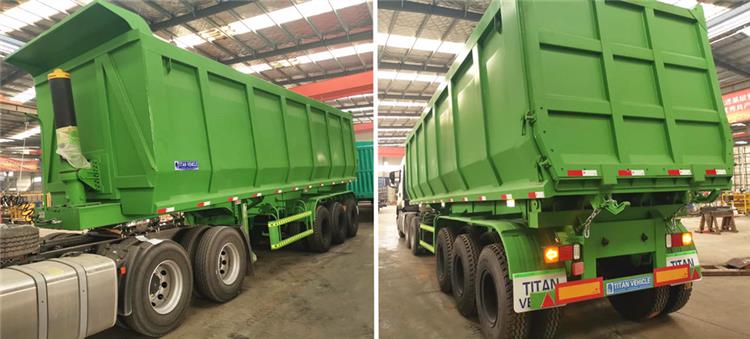

80 Ton Rock Dump Trailer for Sale near me in Rwanda
tri axle dump trailer for sale
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Sidewall thickness: 4mm
Total volume(m³): 35m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
